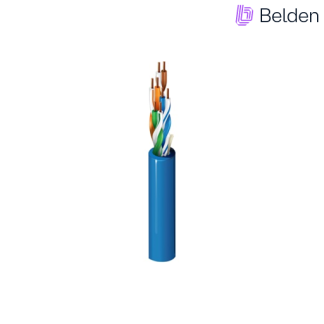

BELDEN CAT6 4P 24AWG, U/UTP, PVC Jkt, Indoor, CM (PN7814A)

Description

Conductor
  Size 24
  Stranding Solid
  Material BC – Bare Copper
  No. of Pairs 4

Insulation
  Material PE – Polyethylene
  Nom Insulation Diameter 0.97 mm (0.038 in)
  Color Code Blue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe

Outer Jacket
  Material PVC – Polyvinyl Chloride
  Nom. Diameter 5.8 mm (0.23 in)
  Ripcord Yes

Standards and Compliance
  Environmental Suitability: Indoor, Indoor
  Flammability / Reaction to Fire: UL1685
  NEC / UL Compliance: CM
  CEC / C(UL) Compliance: CM
  Data Category: Category 6
  TIA/EIA Compliance: ANSI/TIA 568.2-D
  ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
  European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
  APAC Compliance: China RoHS II (GB/T 26572-2011)
