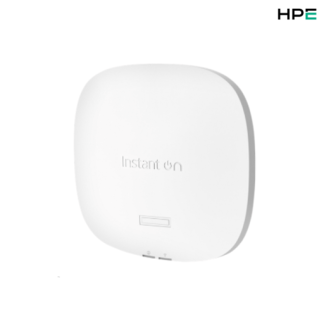

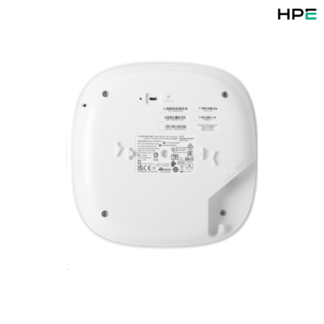

HPE Networking Instant On Indoor Access Point WiFi6 4×4 (RW) AP25 (R9B28A)

Description

HPE Networking Instant On Indoor Access Point Wi‑Fi 6 4×4 (RW) AP25
HPE NW 3Y FC NBD Exch Instant On AP SVC [for R9B28A]
HPE Networking Instant On 30W 802.3at PoE Midspan Injector
HPE Networking Instant On AP25 Flush Mount Sleeve
HPE Aruba Networking PC-AC-NA 125V/10A 1.8m C13 to NEMA 5-15P (NA) AC Power Cord

SKU # R9B28A

Certifications
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input voltage
PoE: 802.3at (class 4) DC power (12V)
Note: Power sources are sold separately unless you purchase the bundle SKU

Wi-Fi antenna
Antennas: Dual omni-directional 4×4 MU-MIMO
Antenna Gain: 3.7 dBi in 2.4GHz 4.5 dBi in 5 GHz
Maximum transmit power:
5 GHz band: +24 dBm (+18 dBm per chain, 6 dB MIMO gain)
2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)

Connectivity, standard
Ultra-fast 802.11ax, 4×4:4

Ports
1x 2.5 GbE Base-T uplink port
DC power connector
Bluetooth Low Energy (BLE)
LED status indicators
Reset/LED control button
Kensington security slot

Mounting
Ceiling/Wall mount clip

Power consumption
Max power consumption (worst-case): 20.1W (PoE), 15.9W (DC)

Radio coverage
Dual-radio 802.11ax
4×4 5 GHz MU-MIMO
2×2 2.4 GHz MU-MIMO

Warranty
Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period.
Community support is available for the life of the product.

Detailed product description
The HPE Networking Instant On Access Points AP25 is our top performer, with a 4×4 antenna array that supports 4 spatial streams to provide coverage and speed in device-dense networks, and is best if used in common areas where 100 or more of your customers can gather. The AP25 2.5 GbE uplink port enables more network bandwidth to support the wireless maximum 5.3 Gbps throughput for connected clients compared to traditional 1 GbE uplink in other Wi-Fi 6 access points.

Differentiator
In the Box:
HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Ethernet cable

Add PoE or DC power source
For use in those countries and regions where no specific regulatory domain is required.

Weight
1.18 kg (2.6 lb)

Dimensions
5.1 x 20.3 cm (2 x 8 x 8 in)
