Description
Display/Image
Projection System DLP™
Light Source Philips 203 W E20.7i
Light Source Life 5000 hours (Standard), 10000 hours (ECO)
Native Resolution 1024 x 768
Maximum Resolution 1920 x 1200
Brightness4800 ANSI Lumens (Standard), (Compliant with ISO 21118 standard)
Aspect Ratio 4:3 (Native) 16:9 (Supported)
Contrast Ratio 20,000:1
Image Size 23″ (58.4 cm) ~ 7.62 m (300″)
Throw Ratio 1.96 to 2.15 (1270 mm@2000 mm)
Zoom Ratio 1.1x
Digital Zoom 2x
LensF = f/2.56~f/2.68, f = 22 mm~24.10 mm, Manual Zoom, Manual Focus
Projection Offset (Half-Height) 120%
Projection Mode Rear, Front, Front Ceiling, Rear Ceiling
Display Color 1.07 billion
Vertical Sync Rate 24 ~ 120 Hz
Horizontal Sync Rate 15 to 100 kHz

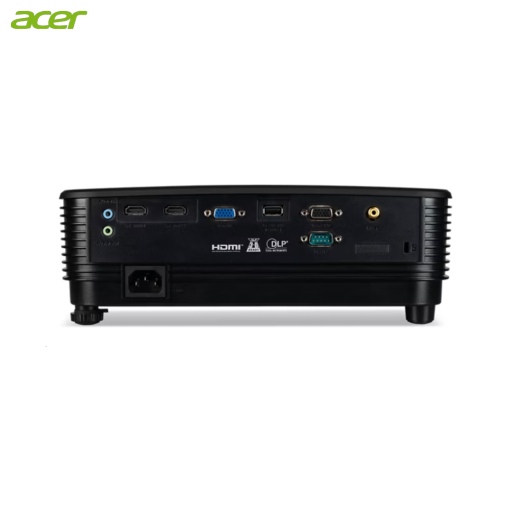

Interfaces/Ports
HDMI HDMI1.4a (HDCP 1.4) x 2
VGA In x1, D-sub
VGA Out x1, D-sub
Component x1 RCA
Video x1, RCA
Audio In x1, 3.5mm mini jack
Audio Out x1, 3.5mm mini jack
S/PDIF
USB Type-A Out x1, DC Out (5V/1.5A)
Speaker x1, 3 W Speaker
Control & Network
RS232 x1, D-sub
General
Security PIN Code Locking / Kensington Lock / Security Bar
Power Description
Power Consumption 260Watts (Standard), 205Watts (ECO), 0.5Watts (Standby)
Physical Characteristics
Installation Ceiling Mountable
Dimensions (W x D x H) 299.50 mm (11.79″) x 220 mm (8.66″) x 105.10 mm (4.14″)
Weight (Approximate) 2.4 kg (5.3 lb)
Miscellaneous
Optional Accessories Lamp (MC.JSA11.002)
Standard Accessories

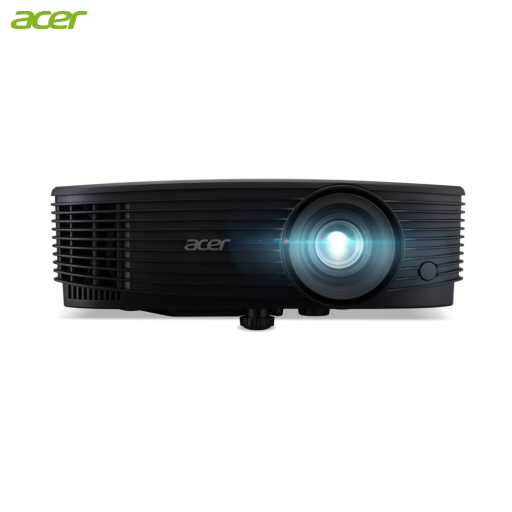

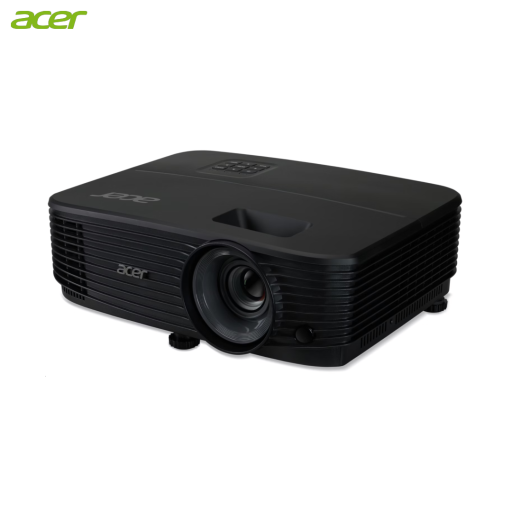

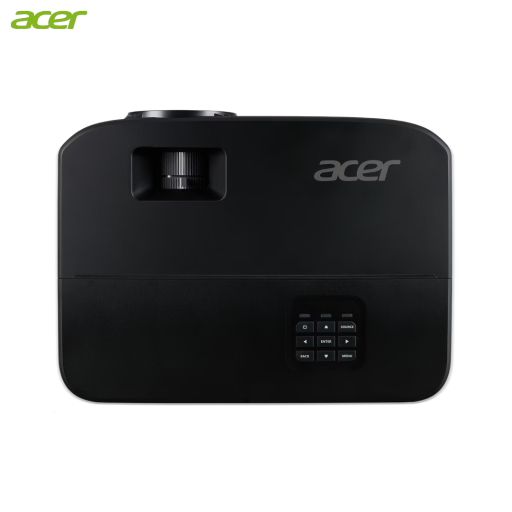

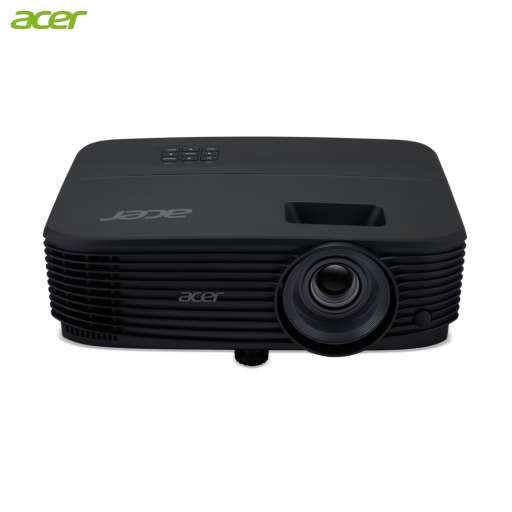

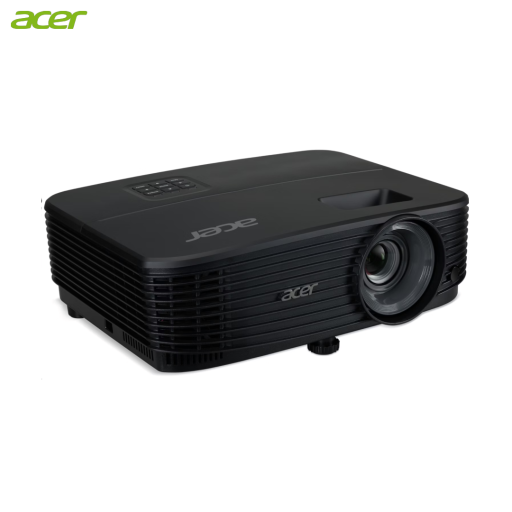

X1229 DLP Projector
AC Power Cord
Battery for remote control
Quick Start Guide
Remote Control
Security Card
VGA Cable
