| Part Number |
| Altos BrainSphere™ T15 F6 |
|
| US.RUHSP.004 |
| Processor |
AMD EPYC™ 4124P 4C/8T (3.80 GHz) Processor |
| Cache Memory |
16MB L3 Cache |
| Memory |
(1x) 16GB DDR5-4800 ECC UDIMM |
|
4 DIMM slots (Dual channel); Up to 128GB |
| Network Controller |
Realtek ® 2.5GbE LAN, Realtek ® 1GbE LAN |
| Storage Controller |
AMD onboard Software RAID 0,1,10 (via BIOS) (Windows Only)1 |
| Solid State |
M.2 256GB NVMe SSD |
| Hard Disk |
3.5″ 1TB NL SATA 7200RPM |
| Internal Storage |
4 x 3.5″/2.5” slots (2.5-inch HDD needs optional HDD tray) |
| Optical Drive |
Yes |
| Power Supply |
500W Multiple output 24 pins, 80PLUS® Brown PSU |
| Form Factor |
Tower |
| Others |
Altos USB Mouse and Keyboard |
|
Kensington lock slot, |
| I/O Ports |
Front: 2x USB3.2 Gen 1 Type A, 2x Audio |
|
port s (Line out / Mic in), System LED |
|
(Power/HDD) |
|

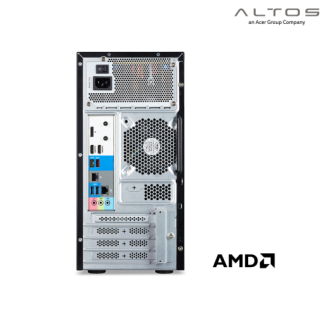

Rear: 1x Display port, 2x USB3.2 Gen1 Type |
|
A, 1x USB 3.2 Gen2 type C, 1x GbE RJ45 |
|
DASH LAN port, 3x Audio Jacks (Line in / |
|
Line out / Mic in), 2x HDMI ports, 1x USB |
|
3.2 Gen2 type A, 1x 2.5 GbE RJ45 LAN port |
| Dimension |
386 (D) x 175 (W) x 360 (H) mm (15.2 x 6.89 x 14.17 inches) |
| Warranty |
3 years Parts – 3 years Labor – 3 Years On Site |
|
|
| Tested OS |
Microsoft® Windows Server® 2022 / 2025 |
|
Red Hat Linux 8.x/9.x |
|
SUSE Linux Enterprise Server 15 SP4 |
|
Ubuntu 22.04/24.04 |
