Description
Key Features
- Power Capacity
3000 VA / 2400 Watts. - Topology
Double-conversion online architecture (zero transfer time to battery, pure sine wave output). - Form Factor

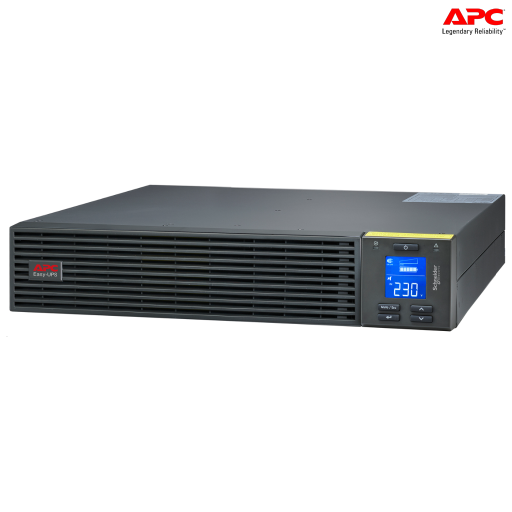

2U Rackmount (Note: The base SRV3KRI SKU is shipped without a rail kit). - Electrical Output
Configurable for 220V, 230V, or 240V nominal output voltage. - Receptacles

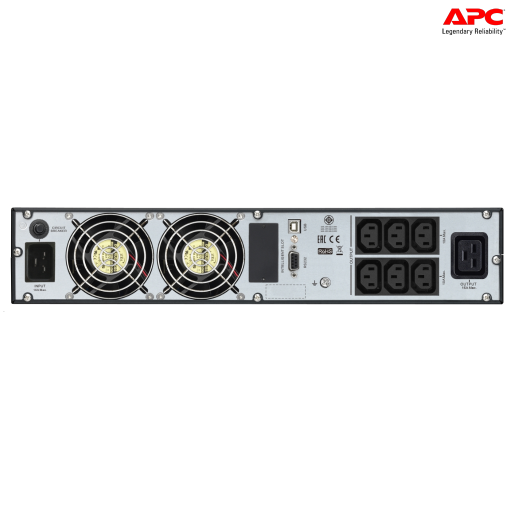

6 x IEC 60320 C13 outlets and 1 x high-current IEC 60320 C19 outlet. - Input Connection
Heavy-duty IEC 60320 C20 inlet. - Battery System
Internal 72V lead-acid battery (Replacement SKU: APCRBCV202 or APCRBCV205 depending on the regional batch) with a 4-hour typical recharge time. - Dimensions & Weight
86 mm x 437 mm x 632 mm; net weight of 27.6 kg. - True Online Double-Conversion
Constantly converts AC to DC, and back to AC. This isolates your sensitive equipment from voltage spikes, frequency fluctuations, and harmonic distortion. - ECO Mode
Operates at a higher efficiency (up to 88% at full load) during stable grid conditions to conserve energy and lower heat dissipation. - Intelligent Charging
Features temperature-compensated battery charging to maximize runtime performance and prolong overall battery lifespan (typically 3 to 5 years). - Management Options

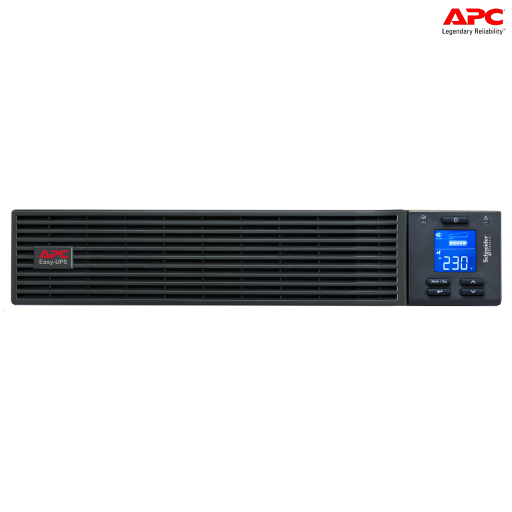

Outfitted with a multi-function LCD console for direct tracking, along with USB and Serial ports, plus 1 open Intelligent Card Slot for network management expansion cards.
Technical Specifications
| Main Input Voltage | 230 V AC 1 phase |
|---|---|
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 phase |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 2400 W |
| Rated power in VA | 3000 VA |
| Input Connection Type | IEC 60320 C20 |
| Output connection type | 6 IEC 60320 C13 1 IEC 60320 C19 |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C19 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable user manual |
| Range of product | Easy UPS On-Line |
| Battery type | Lead-acid internal included |
|---|---|
| UPS connectivity | Serial port USB port Available expansion slot |
| Mounting mode | Tower |
| Run Time |
|
|---|---|
| Efficiency |
|
| Battery type | Lead-acid battery |
| Battery voltage | 72 V |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Replacement battery |
|
| Battery charger power | 60 W rated |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black (RAL 7010) |
|---|---|
| Height | 336 mm |
| Width | 190 mm |
| Depth | 425 mm |
| Net weight | 26.8 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input voltage limits | 110…285 V half load 160…280 V full load |
|---|---|
| Network frequency | 40…70 Hz auto sensing |
| Maximum configurable power in VA | 3000 VA |
|---|---|
| Maximum configurable power in W | 2400 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Product certifications | CE UKCA EAC TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 910 Btu/h |
| IP degree of protection | IP20 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|---|
| Free slots | 1 |
| Control panel | Multifunction LCD status and control console |
| Surge energy rate | 600 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 46.500 cm |
| Package 1 Width | 32.500 cm |
| Package 1 Length | 56.500 cm |
| Package 1 Weight | 29.243 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 90.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 128.972 kg |
| Warranty | 2 years repair or replace |
|---|
