Description
All Specifications
| Display | |
| Brightness (ANSI lumens) |
4000
|
| Resolution |
WXGA (1280 x 800)
|
| Native Aspect Ratio |
16:10
|
| Contrast Ratio (FOFO) |
20,000:1
|
| Display Color |
30-bit (1.07 billion colors)
|
| Light Source |
Lamp
|
| Light Source Life |
a. Normal 6000 hrs
b. ECO 10000 hrs c. SmartEco 10000 hrs d. LampSave 15000 hrs |
| Optical | |
| Throw Ratio |
1.55~1.7
|
| Zoom Ratio |
1.1x
|
| Lens |
F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
|
| Projection Offset (Full-Height) |
100%
|
| Keystone Adjustment |
1D, (Auto) Vertical ± 30 degrees
|
| Picture | |
| Picture Modes |
3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
|
| Compatibility | |
| Resolution Support |
VGA (640 x 480) to WUXGA_RB (1920 x 1200) *RB=Reduced blanking
|
| Horizontal Frequency |
15K~102KHz
|

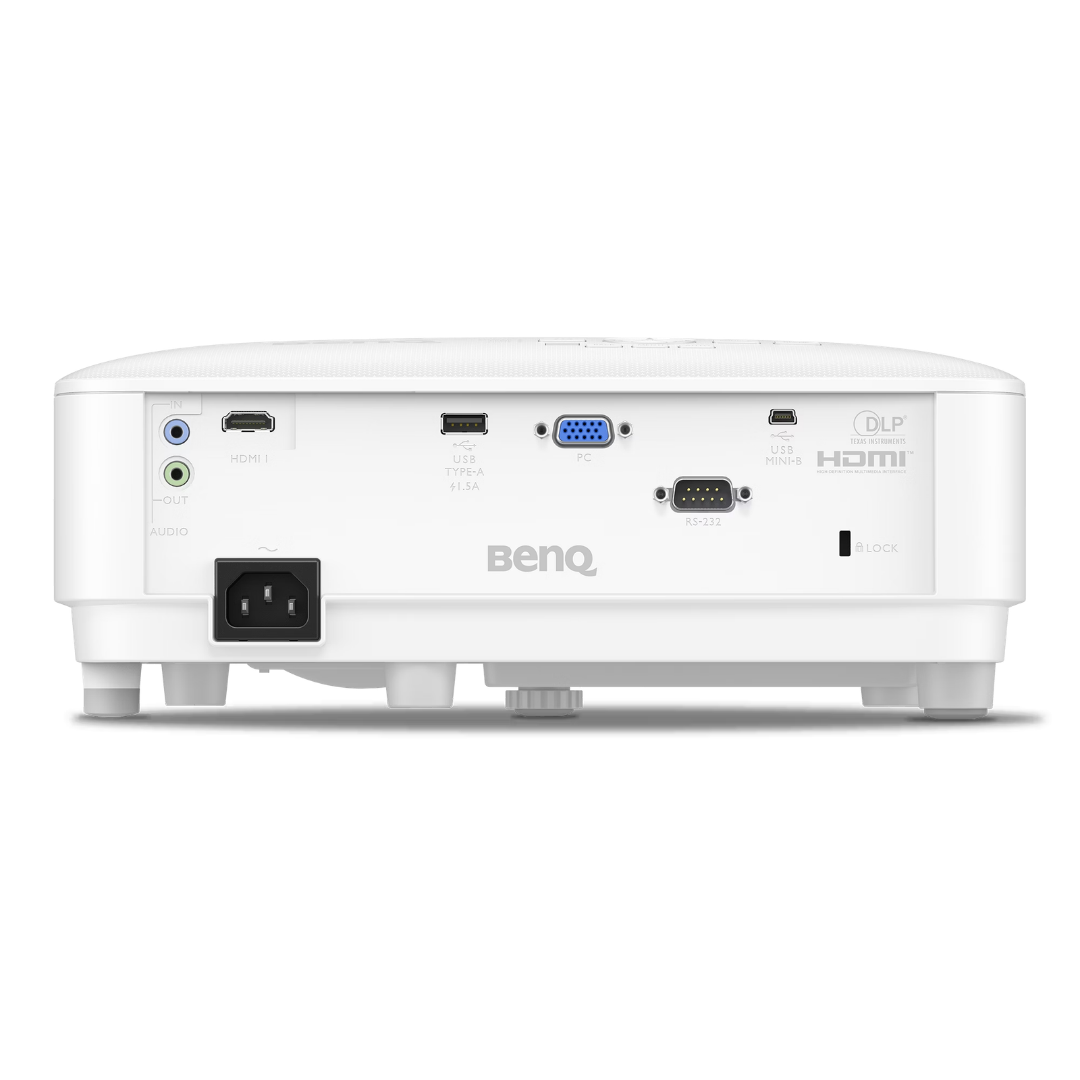

| I/O Interface | |
| PC in (D-sub 15pin) |
(x1)
|
| HDMI in |
HDMI-1 (1.4a/HDCP1.4)
|
| USB Type A |
USB Type A-1 (2.0/Service FW Upgrade), (x1)
|
| USB Type Mini B |
(x1)
|
| RS232 in (DB-9pin) |
(x1)
|
| Audio | |
| Speaker |
(x1), 10W
|
| Audio in (3.5mm Mini Jack) |
(x1)
|
| Audio out (3.5mm Mini Jack) |
(x1)
|
| Environment | |
| Operating Temperature |
0~40℃
|
| Power Supply |
AC 100 to 240 V, 50/60 Hz
|
| Typical Power Consumption (110V) |
260W/110V
|
| Acoustic Noise (Typ./Eco.)(dB) |
34/29
|
| Accessories | |
| Remote Control w/ Battery |
RCX016
|
| Power Cord (by region) |
x1 (1.8M)
|
| User Manual CD |
1 (24L)
|
| 3D Glasses |
DGD5, (Optional)
|
| Quick Start Guide |
(x1) 21L
|
| Lens Cover |
Yes
|
| Universal Ceiling Mount |
(Optional)
|
| Dimension & Weight | |
| Dimensions (W x H x D) (mm) |
296 x 120 x 221
|
| Net Weight (kg) |
2.3
|
| Projection System | |
| Projection System |
DLP
|
| Warranty | |
| Warranty |
2 Years on unit / 1 Year or 1000 hrs. on Lamp
|
