Technical Specifications
| Model |
5A1200i-NEMA
|
| Rating |
1200 VA / 650 W
|
| Form Factor |
Tower
|
| Electrical Characteristics | |
| Technology |
Line Interactive
|
| Input Voltage Range | 140–300 VAC |
| Frequency Range |
60/50 Hz (Auto sensing)
|
| Surge Protection |
Yes
|
| Generator Compatible |
Yes
|
| Mute by Power Key |
Yes
|
| Circuit Breaker |
Yes
|
| Output | |
| Output Voltage |
230 VAC
|
| Output Voltage Reg. (Battery mode) |
±10%
|
| Battery Wave Form |
Stepped sine wave
|
| Protection |
PCBA current sensor (F/W protection)
|

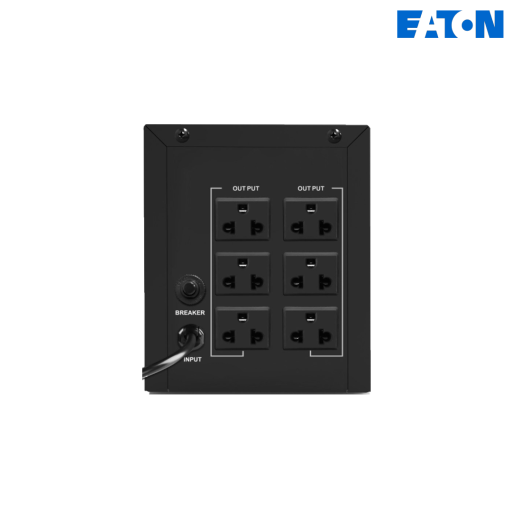

| Output Backup Socket |
NEMA model: (6) NEMA Universal outlets
|
| Transfer time |
2–6ms typical, 10ms max
|
| Battery | |
| Type |
12 V / 9 Ah x1
|
| Floating Charging Voltage |
13.5–13.8V
|
| Recharge Time |
4–6 hours recover to 90% capacity
|
| Typical Battery Runtime | |
| IT Load (100W) |
25 min
|
| 50% load |
4.8 min
|
| 75% load |
25 secs
|
| Interface | |
| On / Off switch |
Yes
|
| Indicator |
LED
|
| Communication–USB |
No
|
| Communication–RS232 |
No
|
| RJ11 Protection |
No
|
| Physical | |
| Dimension D x W x H (mm) |
370 * 138 * 165
|
| Weight (kg) |
6.25
|
| Package |
Color Box
|
| Customer Service and Support | |
| Warranty |
2 Years
|
