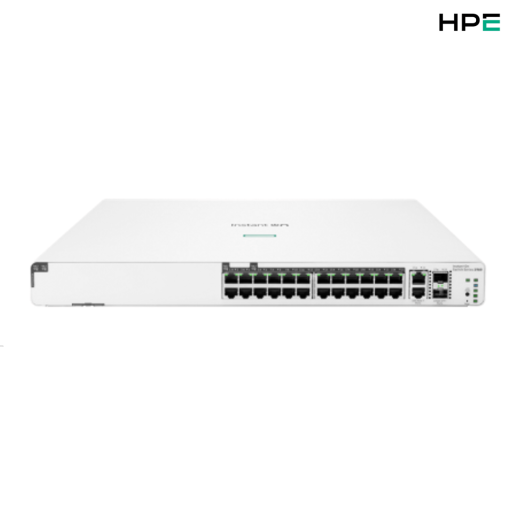

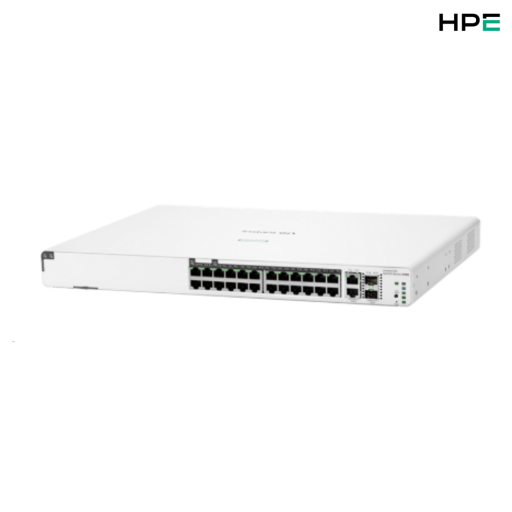

HPE Networking Instant On 1960 Switch 20P Gigabit 4P Gigabit PoE 2P 10GBT 2P SFP+ 370W (JL807A)

Description

HPE Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
INCLUDED: Power Cord – U.S. localization
Aruba 3Y FC NBD Exch 1960 24G 2XGT 2SFP+ 370W SVC [for JL807A]

SKU # JL807A

Differentiator
Ports: 24 x 1 G
Uplink ports: 2 x SFP+ 2 x 10 GBASE-T

Power consumption
Maximum:
100-127V: 500W
200-220V: 480W
Idle:
100-127V: 40W
200-220V: 80W

Input voltage
100-127VAC / 200-240VAC

Ports
24 RJ-45 autosensing
10/100/1000 BASE-T ports with 4 ports
of IEEE 802.af/at/bt CL6 PoE and 20
ports of IEEE 802.af/at CL4 PoE

(IEEE 802.3u Type 100 BASE-TX, IEEE
802.3ab Type 1000 BASE-T, IEEE 802.an
10 GBASE-T);

Duplex: 100 BASE-TX: half or full;
1000 BASE-T: full only
10 GBASE-T: full only

2 SFP+ 10 GbE ports 2 RJ-45
autosensing 100/1000/10 GBASE-T ports

Switching capacity
128 Gbps

Stacking capabilities
4H height

Throughput
95 Mpps

Memory and processor
Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB

PoE capability
Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)

Operating temperature
0-40°C, 0-10,000 ft

Management features
HPE Networking Instant On Cloud; Web browser; SNMP Manager

Warranty
Limited lifetime warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty duration.
Community support is available for the life of the product.

Detailed product description
The HPE Networking Instant On Switch Series 1960 is a scalable solution for growing businesses with heavy bandwidth requirements and empowers your network to meet your business growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.

Weight
4.7 kg (10.4 lb)

Dimensions
35.05 x 44.25 x 4.4 cm (13.80 x 17.42 x 1.73 in)
