Description

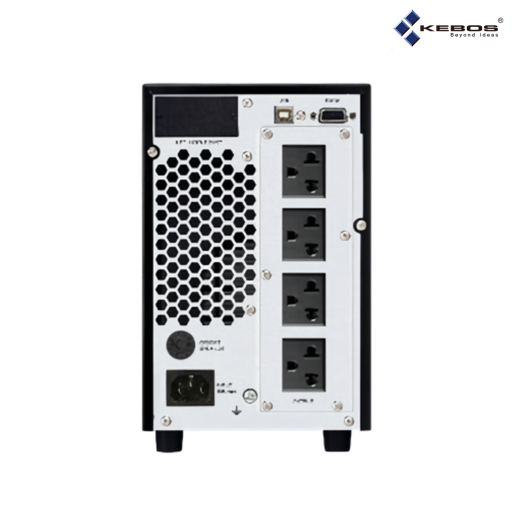

Kebos KH11 Plus 1-10KVA
KH11 Plus 1-10KVA is specifically designed for operation in poor power areas. They provide high power density with long backup time in compact size. It’s ideal for ATMs, banking and other business critical applications. Users also can adjust charging current from 1A to 6A according to different applications.
Features
- True Online Double Conversion
- Comprehensive LCD for ease of monitoring
- Excellent microprocessor-based digital control guarantees high reliability
- Wide input voltage range
- Input power factor correction
- Unity power factor
- Auto sensing frequency
- Cold start function
- Automatic charging in OFF mode
- Intelligent battery management
- Built-in USB & RS-232 communication port
- Optional Network Card for remote monitoring
- Generator compatible
Technical Specifications
| Model |
KH11-2KVA Plus
|
| Capacity |
2000VA / 2000W
|
| Form Factor |
Tower
|
| INPUT | |
| Nominal Voltage |
208 / 220 / 230 / 240 Vac
|
| Voltage Range | 110-300 Vac (160-300 Vac at 100% load | 110-300 Vac at 50% load) |
| Frequency Range |
50/60 Hz (auto-sensing), 40-70 Hz range
|
| Power Factor |
0.99
|
| OUTPUT | |
| Nominal Voltage |
208 / 220 / 230 / 240 Vac
|
| Voltage Regulation |
+/- 1%
|
| Frequency (Synchronized) |
50 Hz or 60 Hz +/- 0.1 Hz
|
| Transfer Time |
Zero
|
| Output Socket |
4 x Universal Type (Surge Protection & Battery Back-Up)
|
| Waveform |
Pure Sinewave
|
| BATTERY | |
| Battery Type |
4 x 12 V 9Ah Maintenance-Free, Sealed Lead Acid, Leak Proof
|
| Typical Recharge Time |
4 Hours to recover 90-100% capacity
|
| SYSTEM FEATURES | |
| Efficiency |
AC Mode: 89%
Battery Mode: 87% |
| Crest Factor |
3:1 of T.H.D. @ Linear Load
|
| Harmonic Distortion |
≦ 3% of T.H.D. (linear load)
≦ 6% of T.H.D. (non-linear load) |
| Protection |
Discharge, Overcharge, Overload, Short Circuit & Surge Protection
|
| Alarm |
Battery Mode: Sounding every 4 seconds
Low Battery: Sounding every second Overload: Sounding every 0.5 second Fault: Continuously sounding Bypass Mode: sounding every 10 seconds |
| ENVIRONMENTAL | |
| Operating Temperature |
0 to 40 Degrees Celsius
|
| Humidity Range |
0 to 90% (non-condensing)
|
| Noise Level |
Less than 40dB
|
| PHYSICAL | |
| Dimension D x W x H (mm) |
395 x 145 x 240
|
| Weight (kg) |
18.6
|
| STANDARDS | |
| Safety |
IEC/EN62040-1
IEC/EN60950-1 |
| EMC |
IEC/EN62040-2
IEC61000-4-2 IEC61000-4-4 IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 |
| PRODUCT SUPPORT | |
| Warranty |
Two (2) Years Warranty on UPS Electronics and One (1) Year on Battery
|
In the interests of continuous product improvement, all specifications are subject to change without notice.
