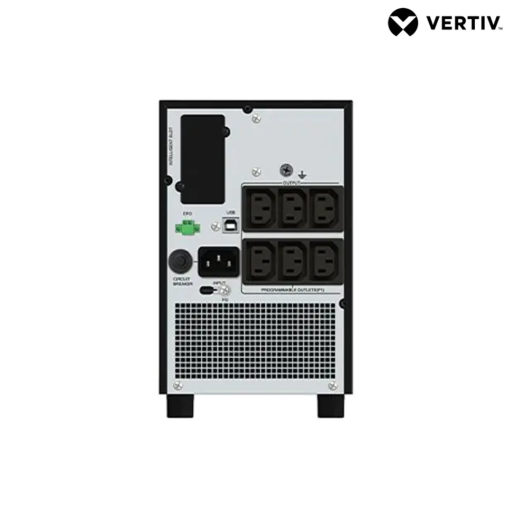

Liebert EDGE-1500IMT 1500VA/1350W 230V Tower UPS

Description

Model Number EDGE-1500IMT

Rating (VA/W) 1500VA/1350W

Dimensions, mm
Unit (W x D x H) 145 x 482 x 220
Shipping (W x D x H) 260 x 590 x 350

Weight, kg
Unit 20
Shipping 23

Input AC Parameters
Voltage Range Without Battery Operation (230V default) 166 – 278
Frequency Range (Hz) 45 – 65, autosensing
Input Power Connector IEC60320 C14
Surge Protection (J) 624

Output AC Parameters
Output Receptacles 3 + 3 IEC60320 C13
Output Receptacles – Controllable Yes – 1 group
Output Voltage 200/208/220/230/240
Waveform (Battery Operation) Pure Sine Wave
Transfer Time 4 – 6 ms Typical
Output Overload (AC Mode)
106% – 125% @ 60 s
126% – 150% @ 50 s
151% – 200% @ 2 s
Efficiency (full load, line mode, typ) 97%

Battery
Type Valve-regulated, non-spillable, lead acid
Recharge Time (internal batteries, typical) 3 hr @ 90%

Environmental
Operating Temperature (ºC) 0 to 40
Storage Temperature (ºC) -25 to +55 without battery inside
Relative Humidity (Operation) 20% to 90%
Operating Altitude (m) 3000
Audible Noise (line mode)
<40dB normal mode, <70% load
<45dB AVR mode, >70% load
Form Factor Tower

Agency
Compliance CE, CB Report, EAC, RCM, UKCA C
Safety EN62040-1
Transportation ISTA 2A
Environmental RoHS2 / REACH / WEEE

Warranty
Warranty 3 years
