Description
Professional II+ Series (1P/1P)-Tower

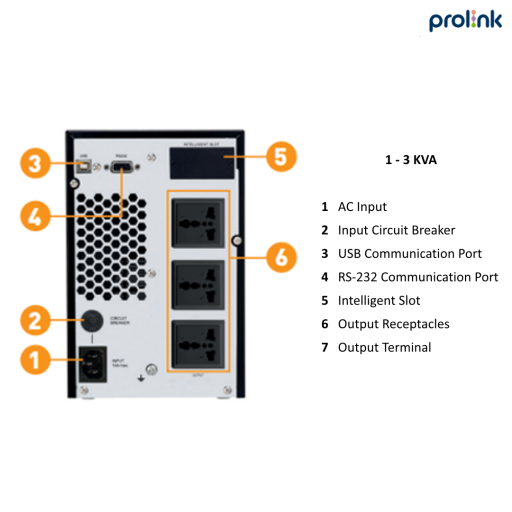

Prolink Professional II+ Series (1P/1P) is a single-phase UPS system using microprocessor controlled true online double conversion technology and it can be used to provide protection for critical loads especially on IT applications. High input power factor correction in the system improves e ciency and reduces overall losses. Users can easily monitor and access to their UPS status from a comprehensive LCD display. Both Tower and Rack Types of UPS systems have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relay contact cards. SNMP option is also available for power management via SNMP manager and
web browser. In addition, Emergency Power O (EPO) function is also available to protect the personnel and the equipment in case of fire outbreak or other types of emergency.
Specifications
| Model |
PRO902-ES
|
| UPS Type |
Tower
|
| Phase |
Single phase with ground
|
| Capacity |
2000 VA / 1800 W
|
| INPUT | |
| Nominal Input Voltage |
230V
|
| Input Voltage Range |
110-300 VAC (Based on load at 50%)
160-280VAC (Based on load at 100%) |
| Frequency Range |
40Hz – 70Hz
|
| Power Factor |
≧ 0.99 @ Nominall Voltage (100% load)
|
| OUTPUT | |
| Output Voltage |
200/208/220/230/240VAC
|
| Voltage Regulation |
± 1 %
|
| Frequency Range |
(Synchronized Range) 47~ 53 Hz or 57 ~ 63 Hz
(Batt. Mode) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz |
| Current Crest Ratio |
3:1
|
| Harmonic Distortion |
≦ 3 % THD (Linear Load)
≦ 6 % THD (Non-linear Load) |
| Transfer Time |
AC Mode to Battery Mode: Zero
Inverter to Bypass: 4 ms (Typical) |
| Waveform |
Pure Sine Wave
|
| EFFICIENCY | |
| AC Mode |
88%
|
| Battery Mode |
87%
|
| BATTERY | |
| Battery Type |
12 V / 9 Ah
|
| Quantity |
4
|
| Typical Recharge Time |
4 hours recover to 90% capacity
|
| Charging Current (max) |
1A
|
| Charging Voltage |
54.7 VDC ±1%
|
| INDICATORS | |
| LCD |
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
|
| ALARM | |
| Battery Mode |
Sounding every 4 seconds
|
| Low Battery |
Sounding every second
|
| Overload |
Sounding twice every second
|
| Fault |
Continuously sounding
|
| PHYSICAL | |
| Dimension D x W x H(mm) |
397 x 145 x 220 (D x W x H)
|
| Net Weight (kgs) |
17
|
| ENVIRONMENT | |
| Humidity |
20-90 % RH @ 0- 40°C (Non-condensing)
|
| Noise Level |
Less than 50dB @ 1 Meter
|
| SURGE PROTECTION AND FILTERING | |
| Surge Energy Rating (Joules) |
625J
|
| MANAGEMENT | |
| Smart RS-232 / USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC
|
| Optional SNMP |
Power management from SNMP manager and web browser
|
| COMPLIANCE STANDARDS | |
| Safety |
IEC/EN 62040-1
|
| EMC |
IEC/EN 62040-2
|
| Performance |
IEC/EN 62040-3
|
| WARRANTY | |
| Warranty |
2 Years on UPS
1 Year on Battery |
*1-3KVA: Derate to 80% of capacity in Frequency converter mode and to 80% when the output voltage is adjusted to 200/208VAC.
Product specifications are subject to change without further notice.
