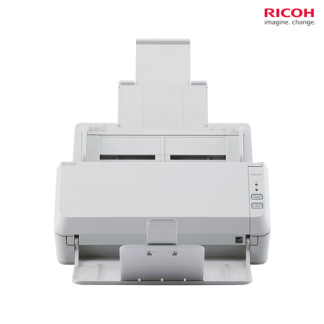

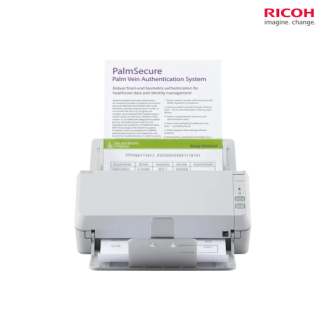

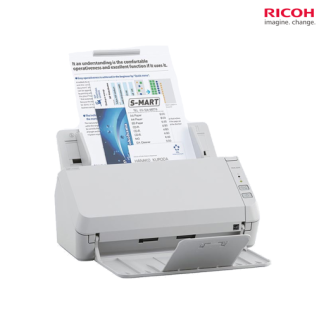

Ricoh ScanPartner SP-1130N Image Scanner – ADF, 30ppm/60ipm, Duplex, 600dpi

₱18,990.00

Note: Price and availability may change without notice.

Simple and network compatible scanner for business

The SP-1130N provides high-value performance as an entry-level model for your business with scanning speeds of 30 ppm/60 ipm (A4 portrait, color, 200 / 300 dpi), ADF capacity of 50 sheets, ability to scan a wide range of documents.

  • Supports both USB 3.2 Gen 1×1 high-speed connection and wired network connection
  • Compact and user-friendly design
  • High-quality technologies for accurate and reliable feeding
  • Plastic card scanning
  • PaperStream IP and PaperStream Capture providing advanced image processing functions, with PaperStream Capture Pro and Pro Premium software as superior options
  • Various software available for better data management
  • PaperStream ClickScan also available for ad-hoc use to scan in 3 simple steps

Datasheet (1.29 MB)



Category: Tags: , , , , , , , , , , , , , , Brand:

Description

Product Highlights

Easy One-button Scanning
Scans with just the push of a button.
Compact Design
Small footprint design fits in limited spaces.
Network enabled
Scan to your PC with flexible placement options.
Economical
Great for home and small office use.
Maximize Imaging Solutions

PaperStream Technology is designed for any level of user with a simple interface.

Details

  • Scanning speeds of up to 30 pages per minute
  • 50-page automatic document feeder (ADF)
  • Supports both USB 3.2 and Ethernet wired network connections
  • Compact size: 298 x 135 x 133 mm
  • Integrated TWAIN and ISIS driver connectivity for compatibility with hundreds of scanning software solutions

Simple and network compatible scanner for business

The SP-1130N provides high-value performance at an affordable price point for your business with scanning speeds of 30 ppm/60 ipm (A4 portrait, color, 200 / 300 dpi), ADF capacity of 50 sheets, ability to scan a wide range of documents.

Simple and easy-to-use operation
Operation is also simple with uncomplicated features including only two buttons; Scan/Stop and Power On/Off. It also features a one-push button to scan feature reducing several steps. Its minimal design reduces risk of human error.
Reliable scanning
The SP-1130N stable scanning with 30 ppm scanning that does not drop speed even when scanning 300 dpi resolution and ADF that holds up to 50 sheets at a time. It assists stress-free and stable operation at the office for maximized precision and efficiency.
Accurate feeding ability for various documents
The scanner handles a wide range of paper from thin to thick, as well as plastic cards to suit all scanning needs. Operators need not worry about unexpected interruptions, rescans, or damaged documents.

Specifications

As of April 1, 2026

Product Name SP-1130N
Scanner Type ADF (Automatic Document Feeder), Duplex
Scanning Speed*1 (A4 Portrait)
(Color*2/Grayscale*2/Monochrome*3)		 Simplex: 30 ppm (200/300 dpi)
Duplex: 60 ipm (200/300 dpi)
Image Sensor Type Single line CMOS-CIS x 2 (front x 1, back x 1)
Light Source RGB LED x 2 (front x 1, back x 1)
Optical Resolution 600 dpi
Output Resolution*4
(Color / Grayscale / Monochrome)		 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White
Document Size Maximum 216 x 355.6 mm (8.5 x 14 in.)
Minimum 52 x 74 mm (2.0 x 2.9 in.)
Long Page Scanning*6 3,048 mm (120 in.)
Paper Weight (Thickness) Paper 50 to 209 g/m2 (13.4 to 56 lb)*7
Plastic Card 0.76 mm (0.0299 in.) or less*8
ADF Capacity*9*10 50 sheets (A4 80 g/m2 or Letter 20 lb)
Expected Daily Volume*11 4,500 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor)
Interface USB*12*13 USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Ethernet 10BASE-T,100BASE-TX,1000BASE-T
Power Requirements AC 100 to 240 V ±10 %
Power Consumption Operating Mode 18 W or less
Power Saving Mode 2 W or less
Auto Standby (Off) Mode 0.3 W or less
Operating Environment Temperature 5 to 35 °C (41 to 95 °F)
Relative Humidity 20 to 80% (non-condensing)
Environmental Compliance ENERGY STAR, RoHS
Dimensions*14 (W x D x H) 298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in.)
Weight 2.5 kg (5.5 lb)
Supported Operating System Windows 11*15, Windows 10*15, Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS*16, Linux (Ubuntu)*16
Software / Drivers*18 PaperStream IP for SP Series (TWAIN/TWAIN x64/ISIS™), WIA Driver*17, Image Scanner Driver for macOS (ICA)*17, Image Scanner Driver for Linux (SANE)*17, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, PaperStream Central Admin, Network Setup Tool for SP Series, SP Series Online Update
Image Processing Functions Multi image output, Automatic color detection, Automatic page size detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew, Edge filler, Vertical streaks reduction, Digital endorser, Background pattern removal, Character thickness, Character augmentation, Character extraction
Included Items AC adapter, USB cable, Setup DVD-ROM
  1. Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:
    • Windows 10/CPU: Intel Core™ i3-10105 3.7GHz/Memory: 8GB/Storage: SSD
  2. Indicated speeds are from using JPEG compression.
  3. Indicated speeds are from using TIFF CCITT Group 4 compression.
  4. Selectable maximum resolution may vary depending on the length of the scanned document.
  5. Limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
  6. Capable of scanning documents with dimensions exceeding that of Legal sizes. Resolutions are limited to 300 dpi or less when scanning documents > 355.6 mm (14 in.) to ≦ 863 mm (34 in.), 200 dpi or less when scanning documents > 863mm (34 in.) in length.
  7. Thicknesses of up to 127 to 209 g/m2 (34 to 56 lb) can be scanned for A8 (52 x 74 mm / 2.1 x 2.9 in.) sizes.
  8. ISO7810 ID-1 type compliant. Capable of scanning embossed cards with total thicknesses of 1.24 mm (0.049 in.) or less.
  9. Maximum capacity depends on paper weight and may vary.
  10. Capable of setting additional documents while scanning.
  11. Numbers are calculated using scanning speeds and typical hours of scanner use, and are not meant to guarantee daily volume or unit durability.
  12. Scanning speeds slow down when using USB 1.1.
  13. When using USB, device must be connected to the USB hub connected to the PC port. If using USB 3.2 Gen 1×1 (USB 3.0) / USB 2.0, USB port and hub compatibility is required.
  14. Excludes the ADF paper chute and stacker.
  15. SP Series scanners do not run with Windows 11 and 10 ARM-based PCs.
  16. Supports only USB connections.
  17. Functions equivalent to those offered by PaperStream IP may not be available with the Image Scanner Driver for macOS/Linux or WIA Driver.
  18. Refer to the SP Series Support Site for driver/software downloads and full lineup of all supported operating system versions.
