Description
Hardware Specifications
CPU
| CPU Model |
AMD Ryzen V1500B
|
| CPU Quantity |
1
|
| CPU Core |
4
|
| CPU Architecture |
64-bit
|
| CPU Frequency |
2.2 GHz
|
| Hardware Encryption Engine |
✓
|
Memory
| System Memory |
8 GB DDR4 ECC SODIMM
|
| Memory Module Pre installed |
8 GB (8 GB x 1)
|
| Total Memory Slots |
2
|
| Maximum Memory Capacity |
32 GB (16 GB x 2)
|
Notes
- Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage
| Drive Bays |
8
|
| Maximum Drive Bays with Expansion Unit |
18 (DX525 x 2)
|
| M.2 Drive Slots |
2 (NVMe)
|
| Drive Type (See all supported drives) |
|
| Hot Swappable Drive* |
✓
|
Notes
- The hot swappable drive feature is not supported by M.2 SSD slots.
- Synology only guarantees full functionality, reliability, and performance for compatible drives. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.

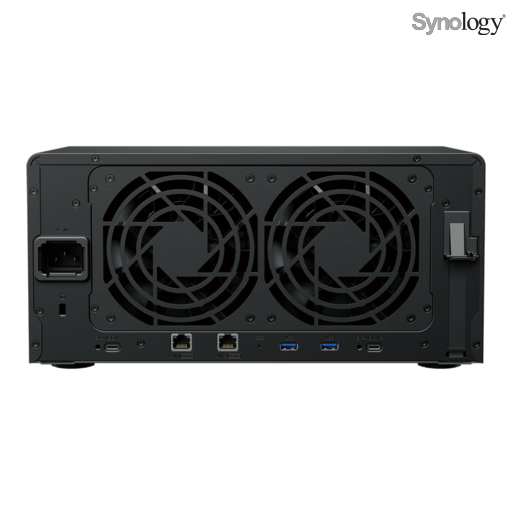

External Ports
| RJ-45 2.5GbE LAN Port |
2
|
| USB 3.2 Gen 1 Port |
3
|
| Expansion Port |
2
|
| Expansion Port Type |
USB Type-C
|
PCIe
| PCIe Expansion |
1 x Gen3 x8 slot (x4 link)
|
Appearance
| Size (Height x Width x Depth) |
166 mm x 343 mm x 243 mm
|
| Weight |
6.0 kg
|
Others
| System Fan |
120 mm x 120 mm x 1 pcs
|
| Fan Speed Mode |
|
| Easy Replacement System Fan |
✓
|
| Brightness Adjustable Front LED Indicators |
✓
|
| Power Recovery |
✓
|
| Noise Level* |
23.8 dB(A)
|
| Scheduled Power On / Off |
✓
|
| Wake on LAN / WAN |
✓
|
| Power Supply Unit / Adapter |
250 watts
|
| AC Input Power Voltage |
100V to 240V AC
|
| Power Frequency |
50/60 Hz, Single Phase
|
| Power Consumption* |
60.1 watts (Access)
18.34 watts (HDD Hibernation) |
| British Thermal Unit |
204.94 BTU/hr (Access),
62.54 BTU/hr (HDD Hibernation) |
Notes
- For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
| Operating Temperature |
0°C to 40°C (32°F to 104°F)
|
| Storage Temperature |
-20°C to 60°C (-5°F to 140°F)
|
| Operating Humidity |
8% to 80% RH
|
| Storage Humidity |
5% to 95% RH
|
|
Certification
|
|
|
|---|---|---|
Warranty
| 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus |
Notes
- The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
- Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
|
Environment
|
RoHS Compliant | |
|---|---|---|
|
Packaging Content
|
|
|
|---|---|---|
|
Optional Accessories
|
|
|
|---|---|---|
Notes
For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
