Description
| HARDWARE FEATURES | |
|---|---|

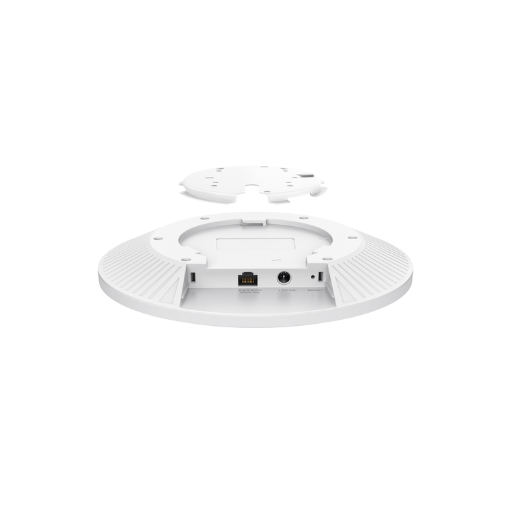

| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max. Power Consumption | • 25.44 W (For PoE); • 22.57 W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 140㎡(1500 ft²)§ |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • Seamless Roaming(802.11k/v/r) • MU-MIMO‡ • EHT320‡ • Mesh△ • BSS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 25dBm （2.4GHz） < 25dBm （5GHz） < 23dBm （6GHz） |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | • EAP772 • Installation Guide • Ceiling/Wall Mounting Kit Note: Power Adapter is NOT included. |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
§Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
