Ubiquiti USW-48-PoE UniFi 48-Port GE, 4 SFP Switch with PoE

Description

OVERVIEW

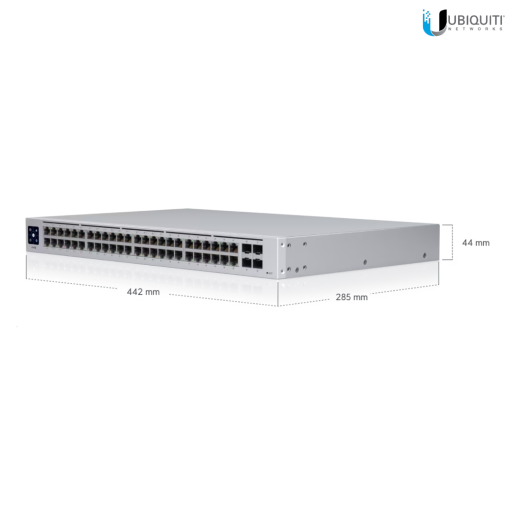

Dimensions
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7″)

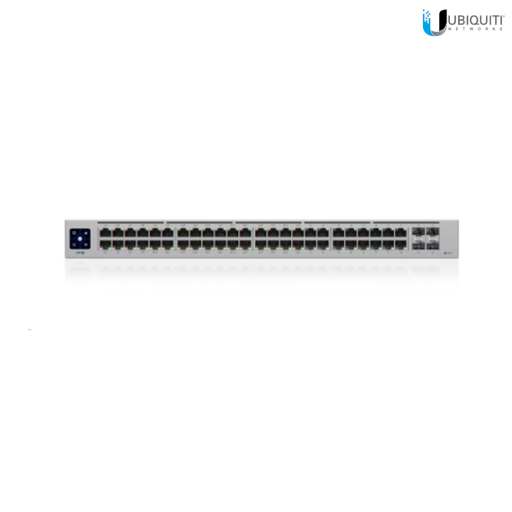

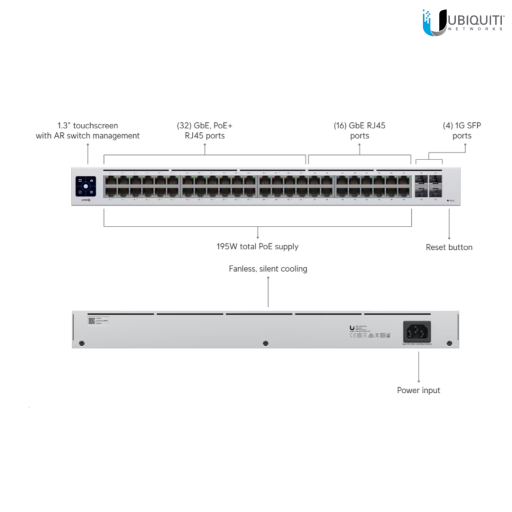

Port Layout
1 GbE RJ45 48 (32 PoE+) (1G/100M/10M)
1G SFP 4 (1G)

Max. PoE Output
Up to PoE+
Total PoE Availability
195W
Form Factor
Rack mount (1U)

PERFORMANCE
Switching Capacity
104 Gbps
Total Non-Blocking Throughput
52 Gbps
Forwarding Rate
77 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
Packet Buffer Size
1.5 MB

Access Lists
IPv4 128
MAC 128

LAYER 2 FEATURES
LACP Port Aggregation ✓
STP & RSTP ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓

HARDWARE
PoE Ports
PoE+ 32

Max. PoE Wattage per Port by PSE
PoE 15.4W
PoE+ 32W

Max. Power Consumption
45W (Excluding PoE Output)
240W (Including PoE Output)

Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 240W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR

Heat Dissipation (Excluding PoE Output)
153.54 BTU/hr
Weight
Without mounting brackets: 4.5 kg (10 lb)
With mounting brackets: 4.6 kg (10.2 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2″)
LCM Display
1.3″ touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant ✓
Certifications
CE, FCC, IC, Anatel

SOFTWARE
Application Requirements
UniFi Network Version 7.2.94 and later
