Description
Specifications
| OVERVIEW | |
| Dimension |

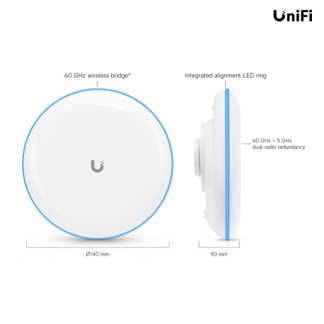

Ø140 x 90 mm (Ø5.5 x 3.5″)
|
| WiFi Standard |
WiFi 5
|
| Spatial Streams |
2
|
| Coverage Area |
500 m (1,640 ft)
|
| Mounting Locations |
Wall, pole
|
| Weatherproofing |
IPX6
|
| Power Method |
PoE
|
| PERFORMANCE | |
| MIMO |
5 GHz: 2 x 2 (DL MU-MIMO)
|
| Max. Data Rate |
60 GHz: 1.7 Gbps
5 GHz: 866.6 Mbps (BW80)
|
| Antenna Gain |
60 GHz: 17.2 dBi
5 GHz: 10 dBi
2.4 GHz: 2 dBi (BLE)
|
| Max. TX Power |
5 GHz: 2 x 2 (DL MU-MIMO)
|
| Supported Data Rates |
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
|
| Wireless Security |
WPA2 AES
|
| HARDWARE | |
| Max. Power Consumption |
11W
|
| Includes PoE Adapter |
✓
|
| Supported Voltage Range |
44—57V DC
|
| Networking Interface |
(1) GbE RJ45 port
|
| Weight |
376 g (13.3 oz)
|
| Operating Modes |
PtP
|
| Wind Loading |
56 N at 200 km/h (12.6 lbf at 125 mph)
|
| Management |
Ethernet Bluetooth
|
| Channel Bandwidth |
Main radio (60 GHz) : 2,160 (MHz)
Backup radio (5 GHz) : HT 20/40, VHT 20/40/80 (MHz) |
| Enclosure Material |
UV-resistant polycarbonate
|
| Button |
(1) Factory-reset
|
| LEDs |
System
R/G/B
|
| NDAA Compliant |
✓
|
| Certifications |
CE, FCC, IC
|
| Operating Frequency |
Main radio (60GHz): 57 – 66 GHz
Backup radio (5GHz): US/CA U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide 5150 – 5725 MHz |
|
Bluetooth (MHz)
|
Worldwide: 2,400 – 2,483.5
|
| Ambient Operating Temperature |
-40 to 70° C (-40 to 158° F)
|
| Ambient Operating Humidity |
5 to 95% noncondensing
|
