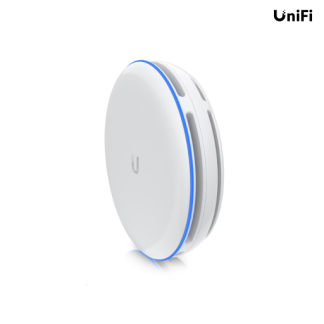

UniFi Building Bridge XG (UBB-XG)

Description

Dimensions Ø191.8 x 59 mm (Ø7.6 x 2.3″)
WiFi Standard WiFi 5
Spatial Streams 2
Coverage Area 500 m (1,640 ft)

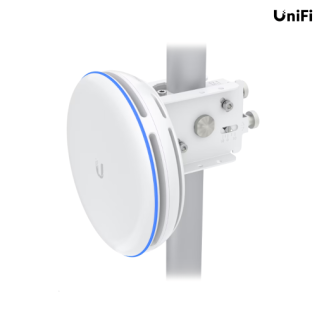

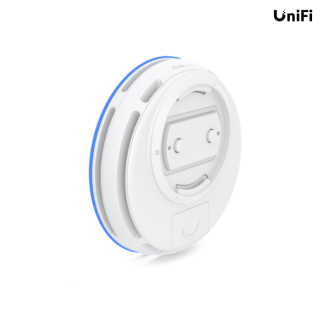

Mounting Locations Wall, pole
Weatherproofing IPX6
Power Method PoE++ / Passive PoE

MIMO 5 GHz: 2 x 2 (DL MU-MIMO)
Max. Data Rate
60 GHz: 6 Gbps
5 GHz: 866.6 Mbps (BW80)
Antenna Gain
60 GHz: 21 dBi
5 GHz: 14 dBi
2.4 GHz: 2 dBi (BLE)
Max. TX Power
60 GHz: 16 dBm
5 GHz: 23 dBm
Supported Data Rates
  802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11b 1, 2, 5.5, 11 Mbps
  802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
Wireless Security WPA2 AES

Max. Power Consumption 29W
Includes PoE Adapter Yes
Supported Voltage Range48V DC ± 10%

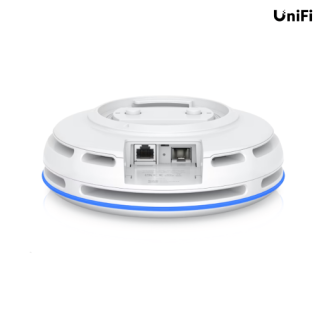

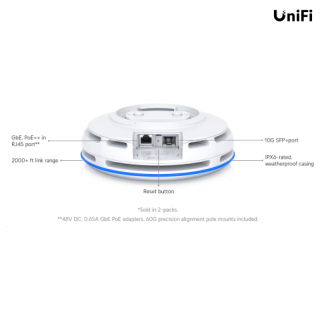

Networking Interface (1) GbE RJ45 port / (1) 1/10G SFP+ port
Weight
Device: 1.7 kg (3.8 lb)
With mount: 2.9 kg (6.3 lb)
Operating Modes PtP
Wind Loading 56 N at 200 km/h (12.6 lbf at 125 mph)
Management Ethernet / Bluetooth
Channel Bandwidth
Main radio (60 GHz) : 2,160 (MHz) Backup radio (5 GHz) : HT 20/40, VHT 20/40/80 (MHz)
Enclosure Material Aluminum alloy, UV-resistant polycarbonate
Button (1) Factory-reset
LEDs
  System R/G/B

Warranty 1 Year
