Description
Key Specifications
- Brightness:
4,000 ANSI Lumens ensures projections remain vivid and easy to read even in well-lit environments. - Resolution:
Native XGA (1024 x 768) with a traditional 4:3 aspect ratio, though it can scale resolutions up to WUXGA (1920 x 1200). - Contrast Ratio:
20,000:1 delivers crisp text separation and deep black levels. - Optics:
Premium all-glass lenses that minimize chromatic aberration for reliable, long-term image clarity. - Lamp Life:
Up to 15,000 hours in LampSave mode (6,000 hours in normal mode). - Audio:
Integrated 10W speaker for clear multimedia audio without external equipment.
All Specifications
| Display | |
| Brightness (ANSI lumens) |
4000
|
| Resolution |
XGA (1024×768)
|
| Native Aspect Ratio |
4:3
|
| Contrast Ratio (FOFO) |
20,000:1
|
| Display Color |
30-bit (1.07 billion colors)
|
| Light Source |
Lamp
|
| Light Source Life |
a. Normal 6000 hrs,
b. ECO 10000 hrs c. SmartEco 10000 hrs, d. LampSave 15000 hrs, |
| Optical | |
| Throw Ratio |
1.96~2.15
|
| Zoom Ratio |
1.1x
|
| Lens |
F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
|
| Projection Offset (Full-Height) |
110%
|
| Keystone Adjustment |
1D, (Auto) Vertical ± 40 degrees
|
| Picture | |
| Picture Modes |
3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
|
| Compatibility | |
| Resolution Support |
VGA (640 x 480) to WUXGA_RB (1920 x 1200) *RB=Reduced blanking
|
| Horizontal Frequency |
15K~102KHz
|

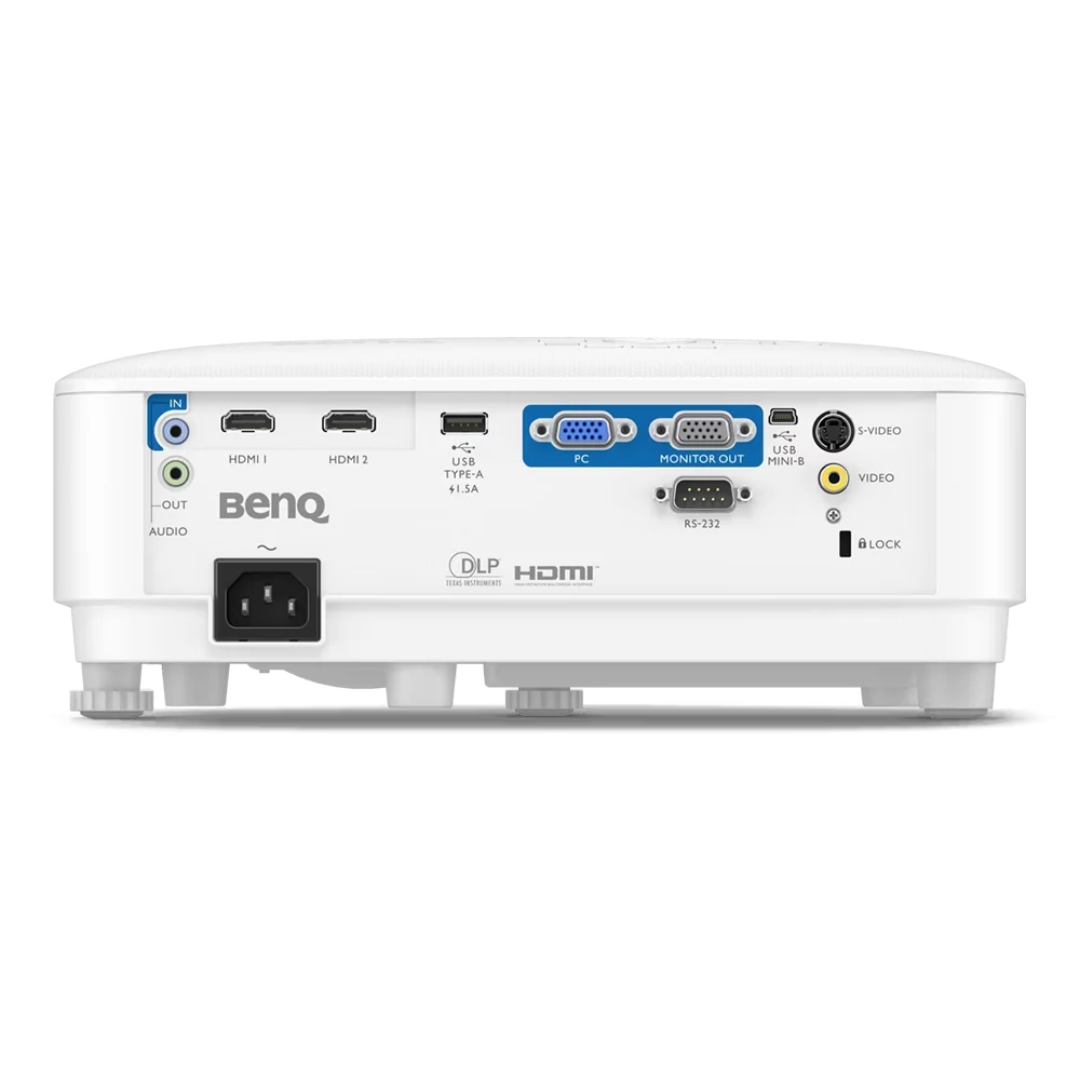

| I/O Interface | |
| PC in (D-sub 15pin) |
(x1)
|
| Monitor out (D-sub 15pin) |
(x1)
|
| Composite Video in (RCA) |
(x1)
|
| S-Video in (Mini DIN 4pin) |
(x1)
|
| HDMI in |
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
|
| USB Type A |
(x1)
|
| USB Type Mini B |
(x1)
|
| RS232 in (DB-9pin) |
(x1)
|
| Audio | |
| Speaker |
(x1), 10W
|
| Audio in (3.5mm Mini Jack) |
(x1)
|
| Audio out (3.5mm Mini Jack) |
(x1)
|
| Environment | |
| Operating Temperature |
0~40℃
|
| Power Supply |
AC 100 to 240 V, 50/60 Hz
|
| Typical Power Consumption (110V) |
260W/110V
|
| Acoustic Noise (Typ./Eco.)(dB) |
34/29
|
| Accessories | |
| Remote Control w/ Battery |
RCX016
|
| Power Cord (by region) |
x1 (1.8M)
|
| VGA (D-sub 15pin) Cable |
1 (1.5m)
|
| 3D Glasses |
DGD5, (Optional)
|
| Quick Start Guide |
(x1) 21L
|
| Warranty Card (by region) |
Yes
|
| Universal Ceiling Mount |
CM00G3, (Optional)
|
| Dimension & Weight | |
| Dimensions (W x H x D) (mm) |
296 x120 x221
|
| Net Weight (kg) |
2.3
|
| Projection System | |
| Projection System |
DLP
|
| Warranty | |
| Warranty |
2 Years on unit / 1 Year or 1000 hrs. on Lamp
|
Notes:
*Lamp in this product contains mercury.
To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specifications are subject to change without notice.
**Offset is calucated by full screen height.
