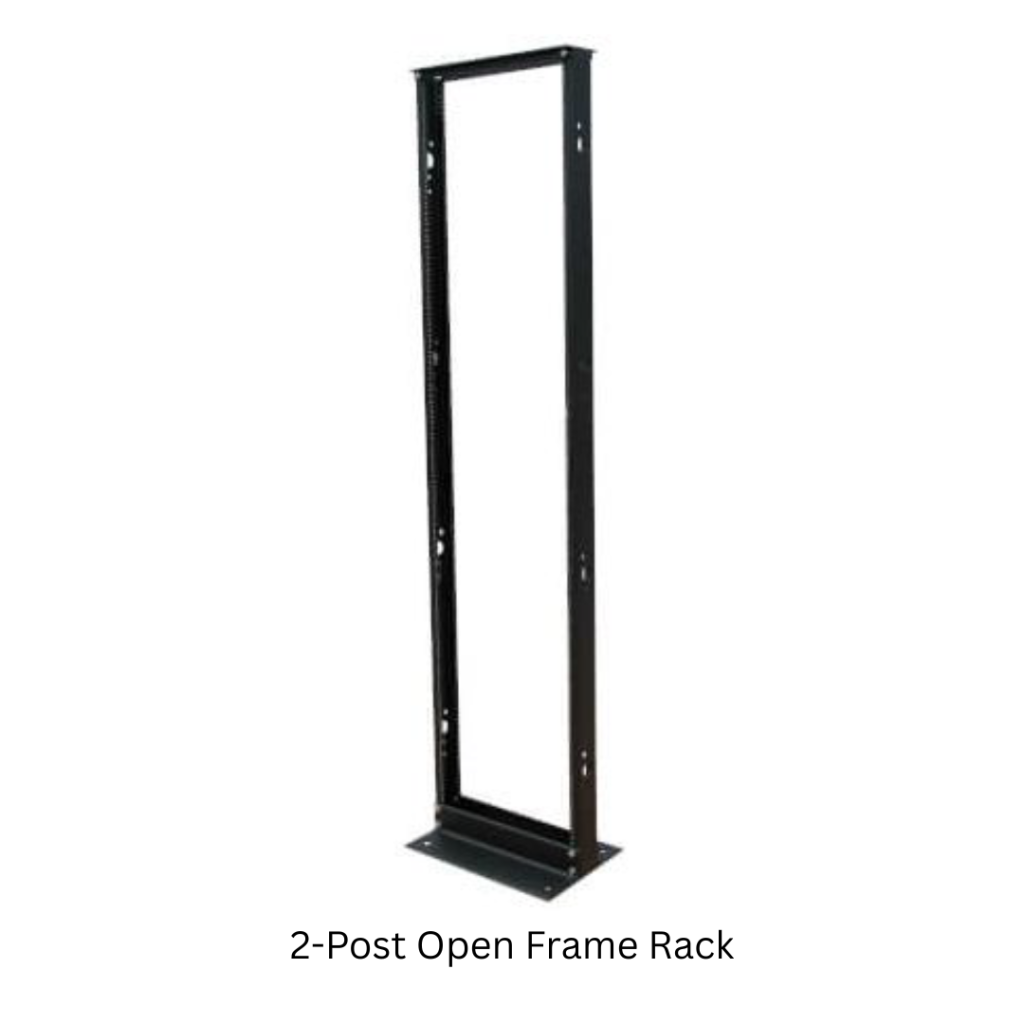

2-Post Open Frame Rack (OF5242)
Dimension: 547mm (W) x 280mm (D) x 1997mm (H)
Static loading: 200KG
Degree of Protection: IP20
Standards: ANSI/EIA RS-310-D、IEC297-2、DIN41494:PART1、
DIN41494:PART7、 GB/T3047.2-92、ETSI
Certification: CE, RoHS，UL
Features:
❖ Stable structure, easy mounting and maintenance
❖ Low cost, disassembled, easy assembly and delivery
Material:
❖ SPCC cold rolled steel;
Surface finish:
❖ Degreasing, Salinization, Electrostatic spray powder coated

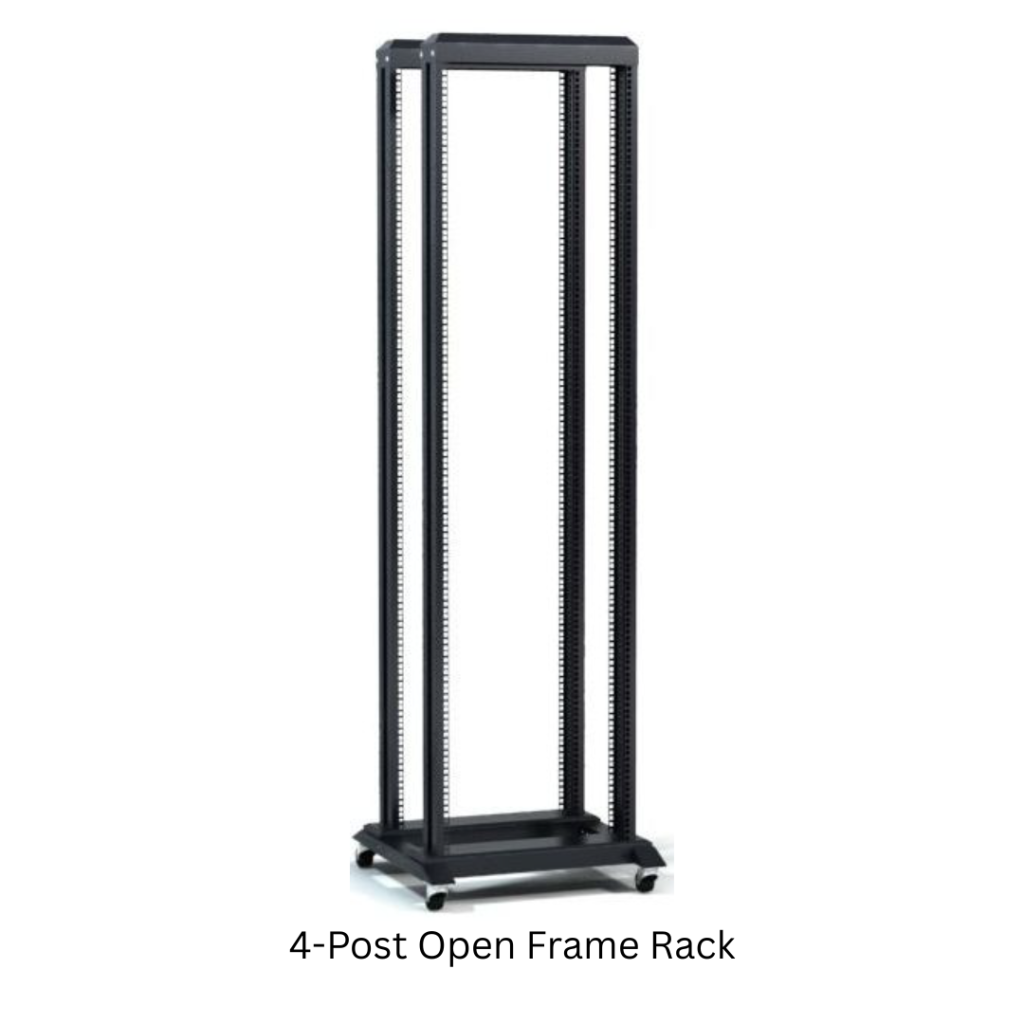

4-Post Open Frame Rack (OF46642)
Unit Dimension: 600mm (W) x 600mm (D) x 2002.8mm (H)
Static loading: 200KG
Degree of Protection: IP20
Standards: ANSI/EIA RS-310-D、IEC297-2、DIN41494:PART1、
DIN41494:PART7、 GB/T3047.2-92、ETSI
Certification: CE, RoHS，UL
Features:
❖ Stable structure, easy mounting and maintenance
❖ Low cost, disassembled, easy assembly and delivery
Material:
❖ SPCC cold rolled steel;
Surface finish:
❖ Degreasing, Salinization, Electrostatic spray powder coated

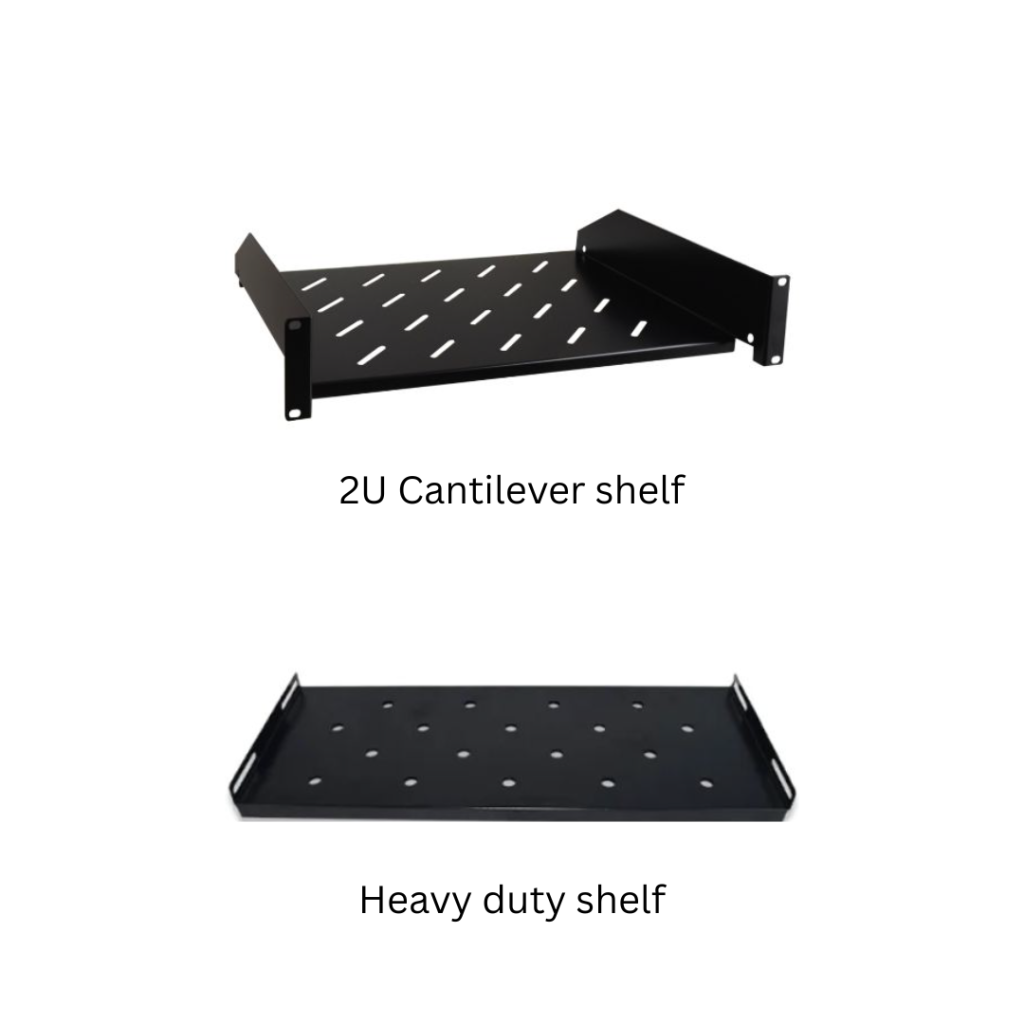

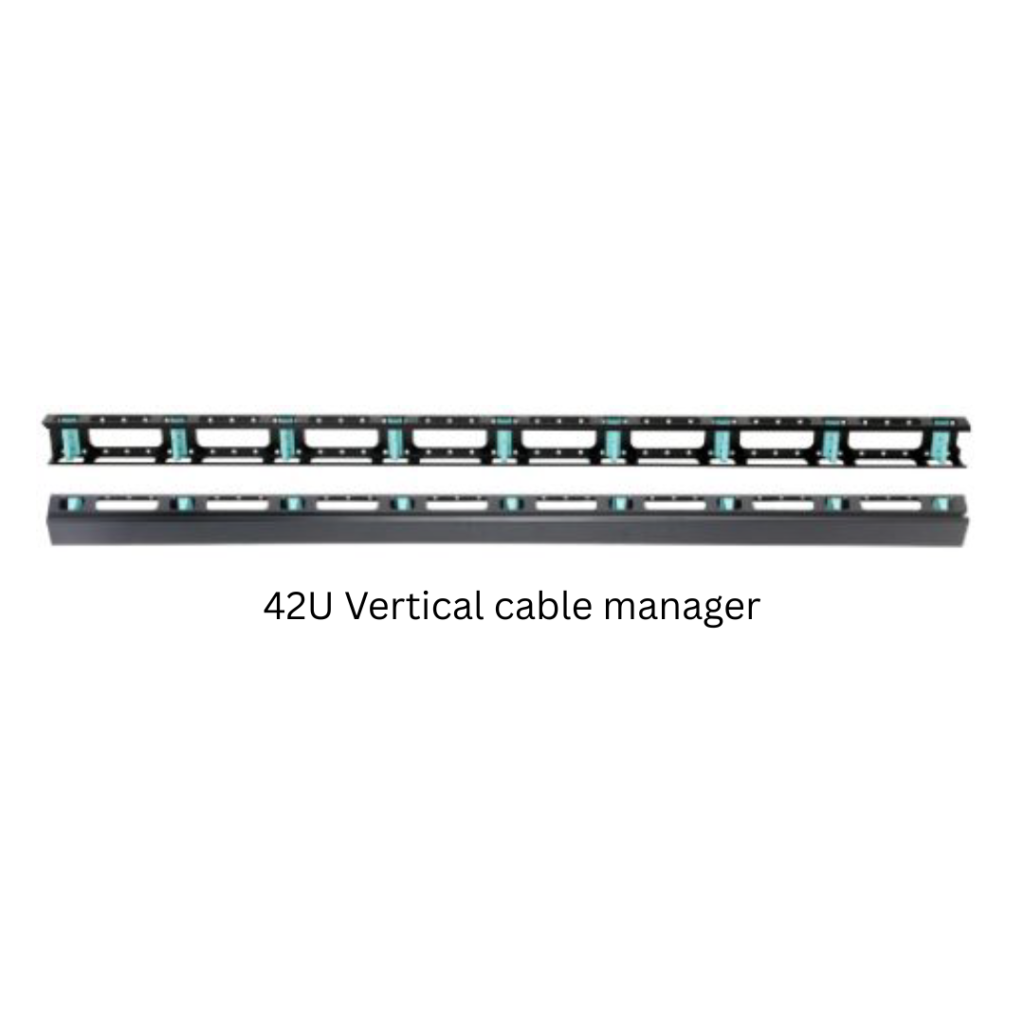

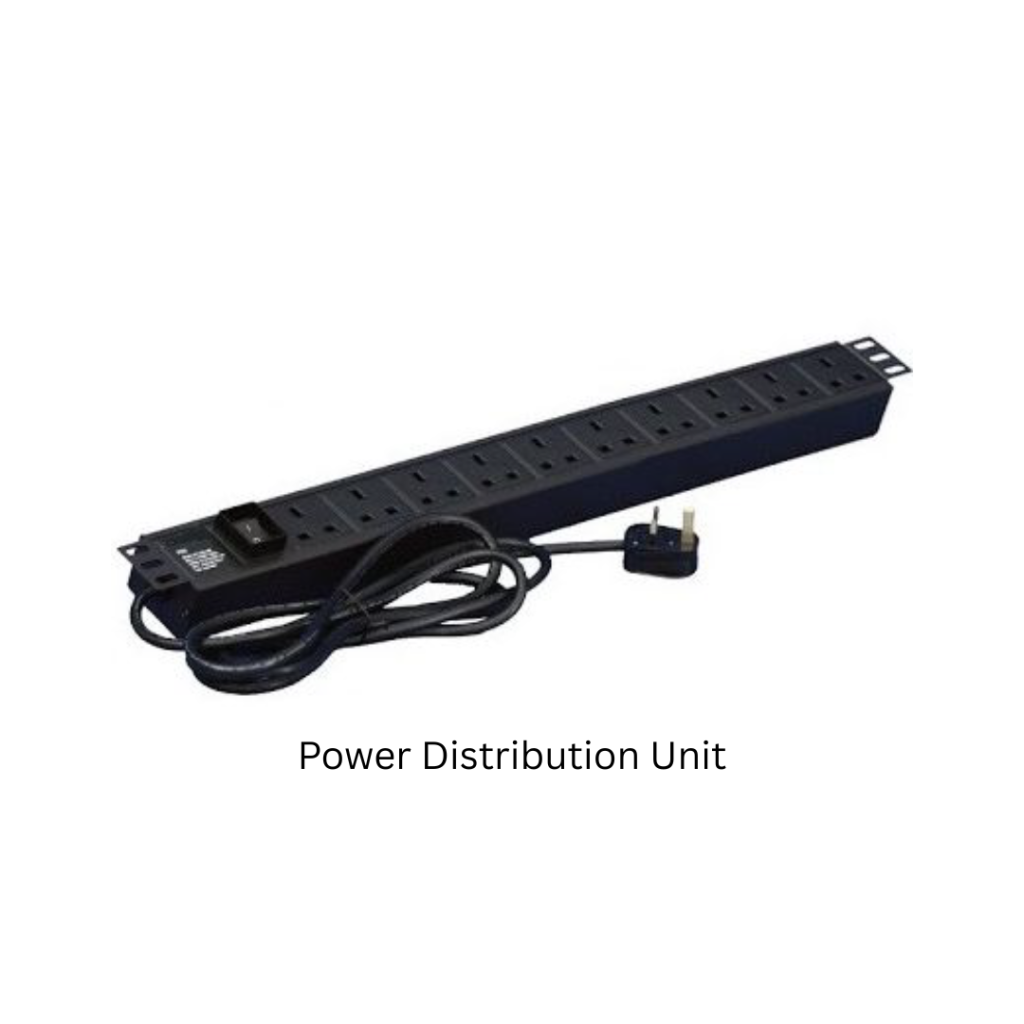

Accessories
