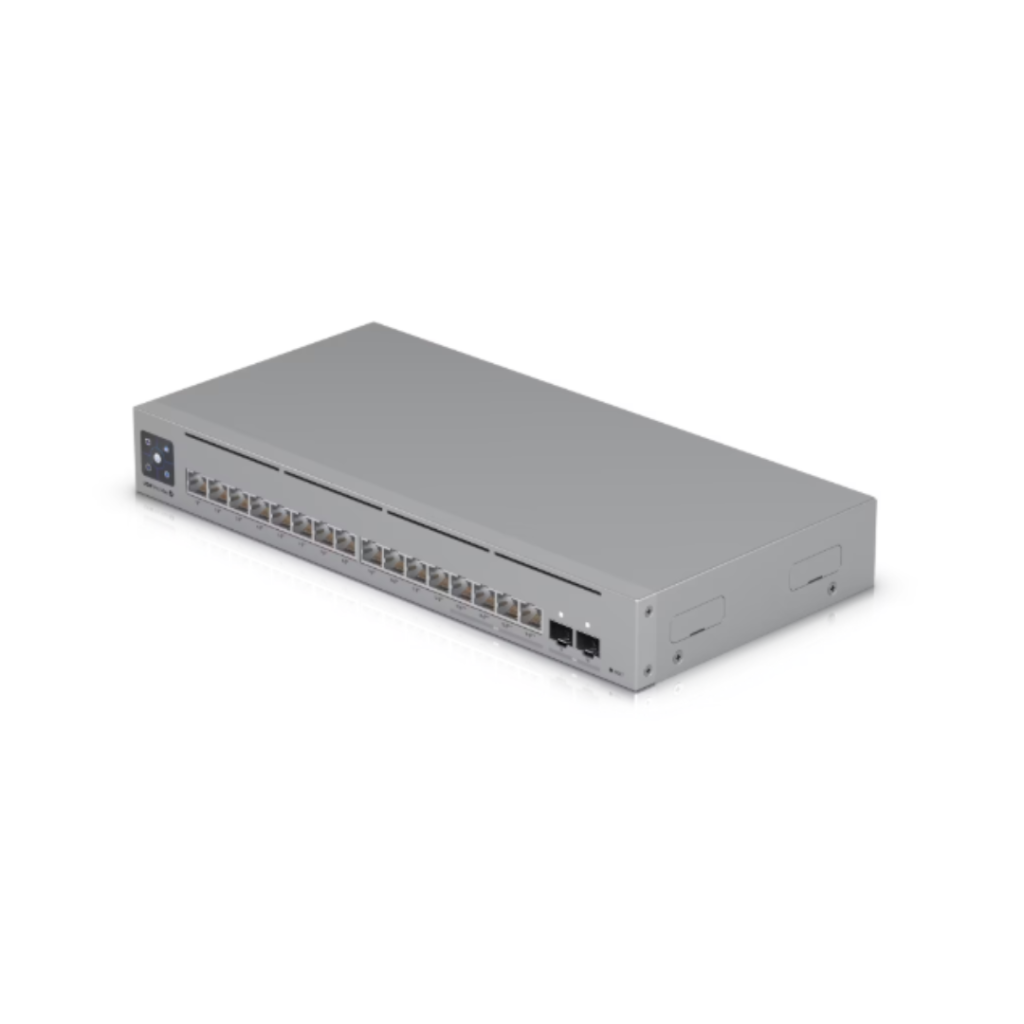

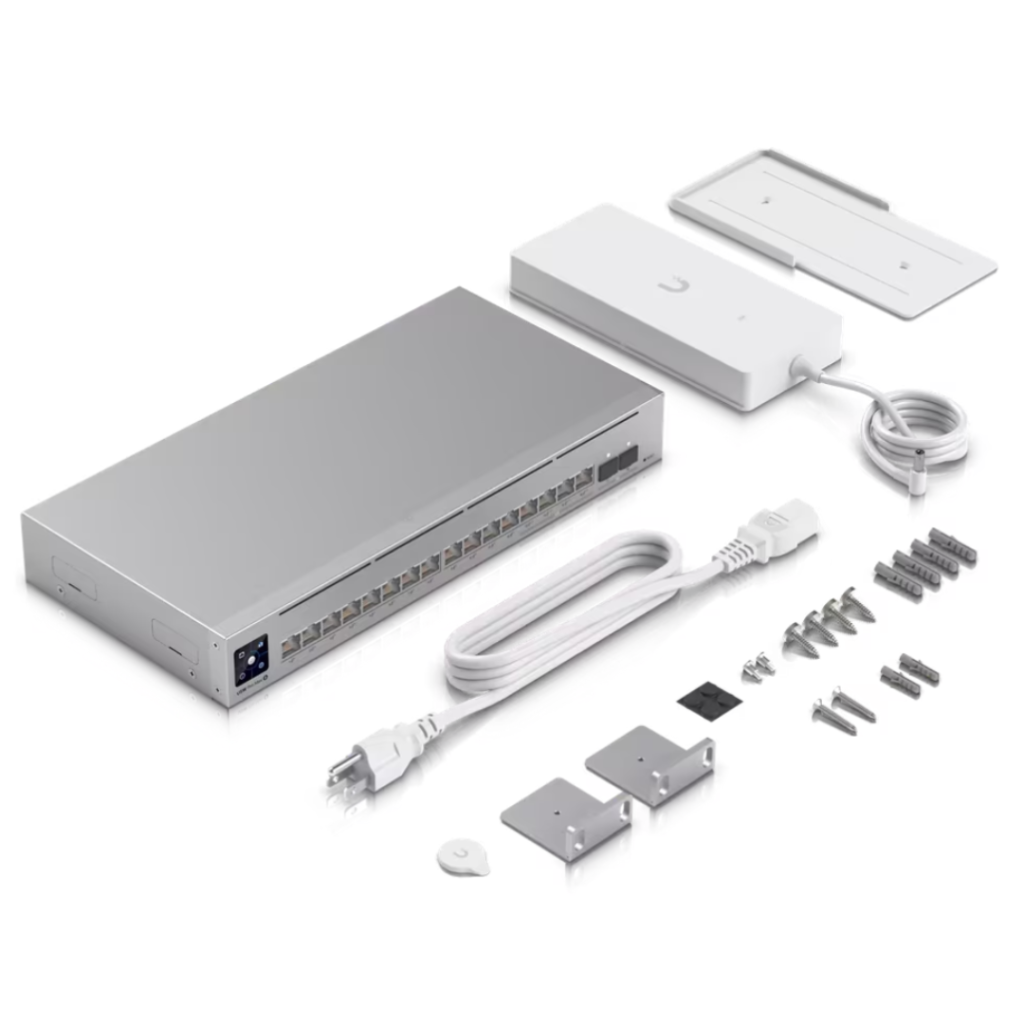

USW-Pro-Max-16-PoE (180W)
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Overview

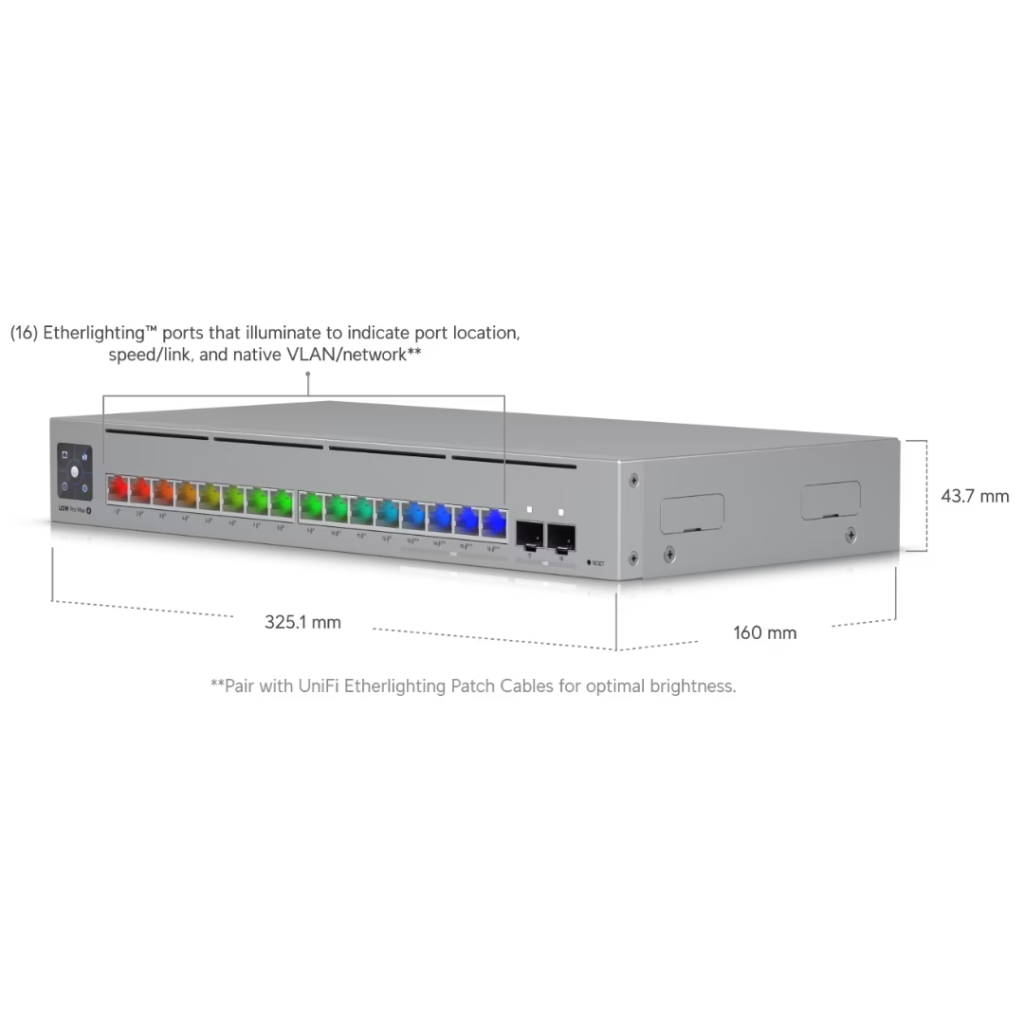

Dimensions:
325.1 x 160 x 43.7 mm
(12.8 x 6.3 x 1.7″)

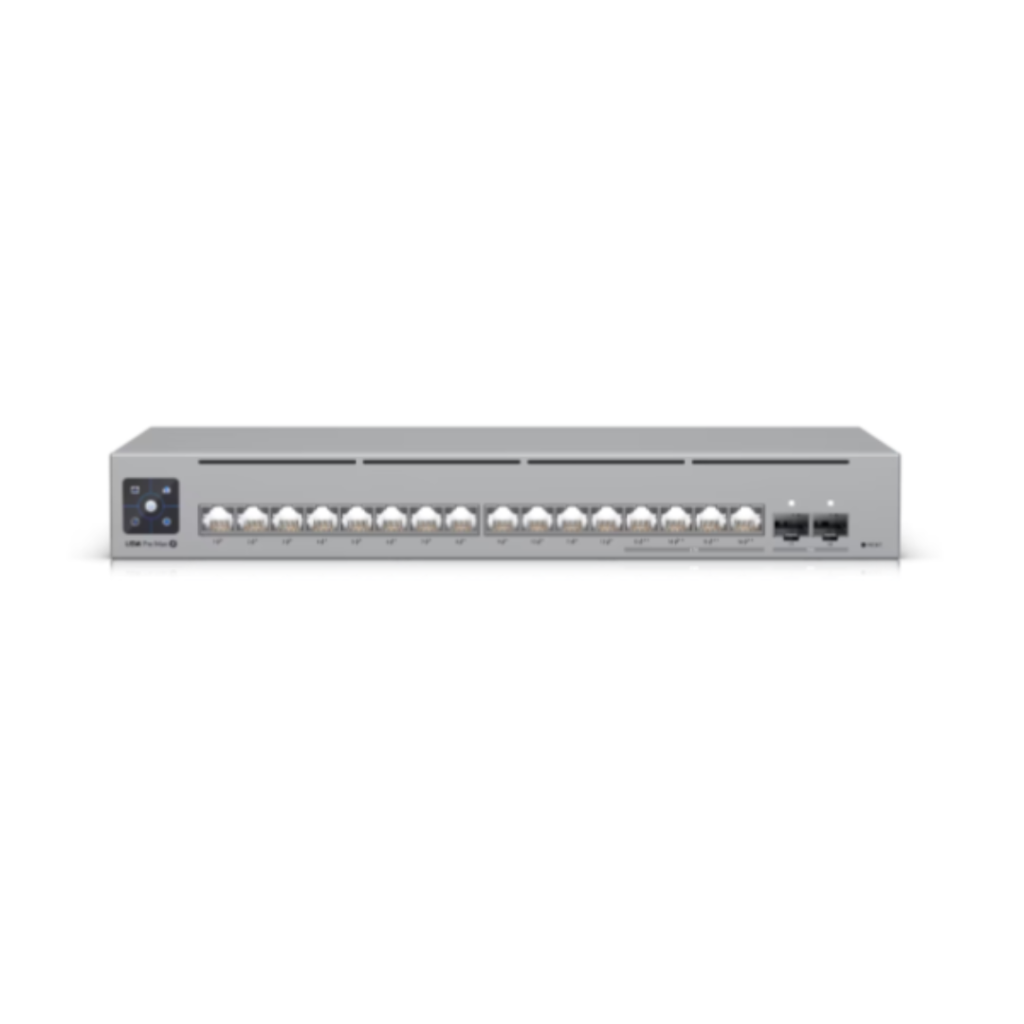

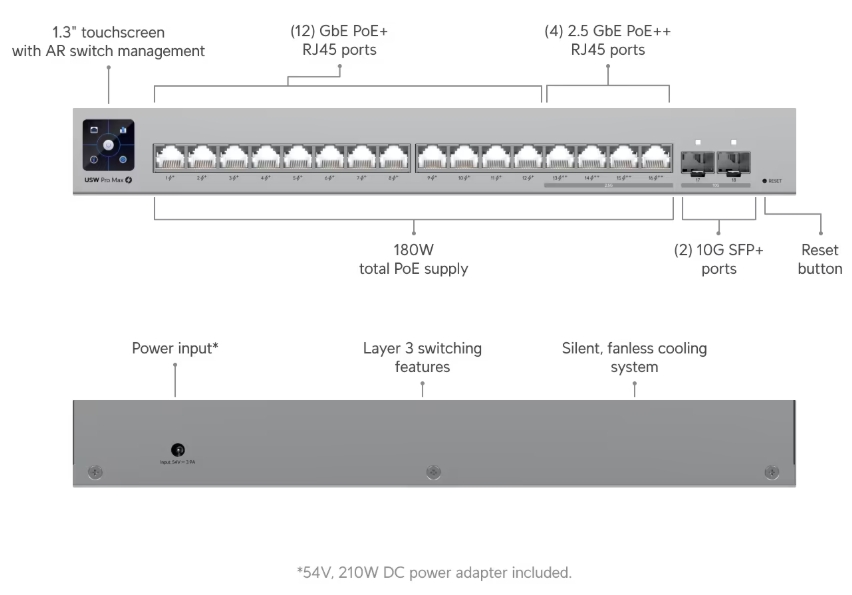

Port Layout
– 1 GbE RJ45
12 (All PoE+)
(1G/100M/10M)
– 2.5 GbE RJ45
4 (All PoE++) (2.5G/1G/100M/10M)
– 10G SFP+
2
(10G/1G)
Max. PoE Output:
Up to PoE++
Total PoE Availability:
180W
Layer 3:
✓
Form Factor:

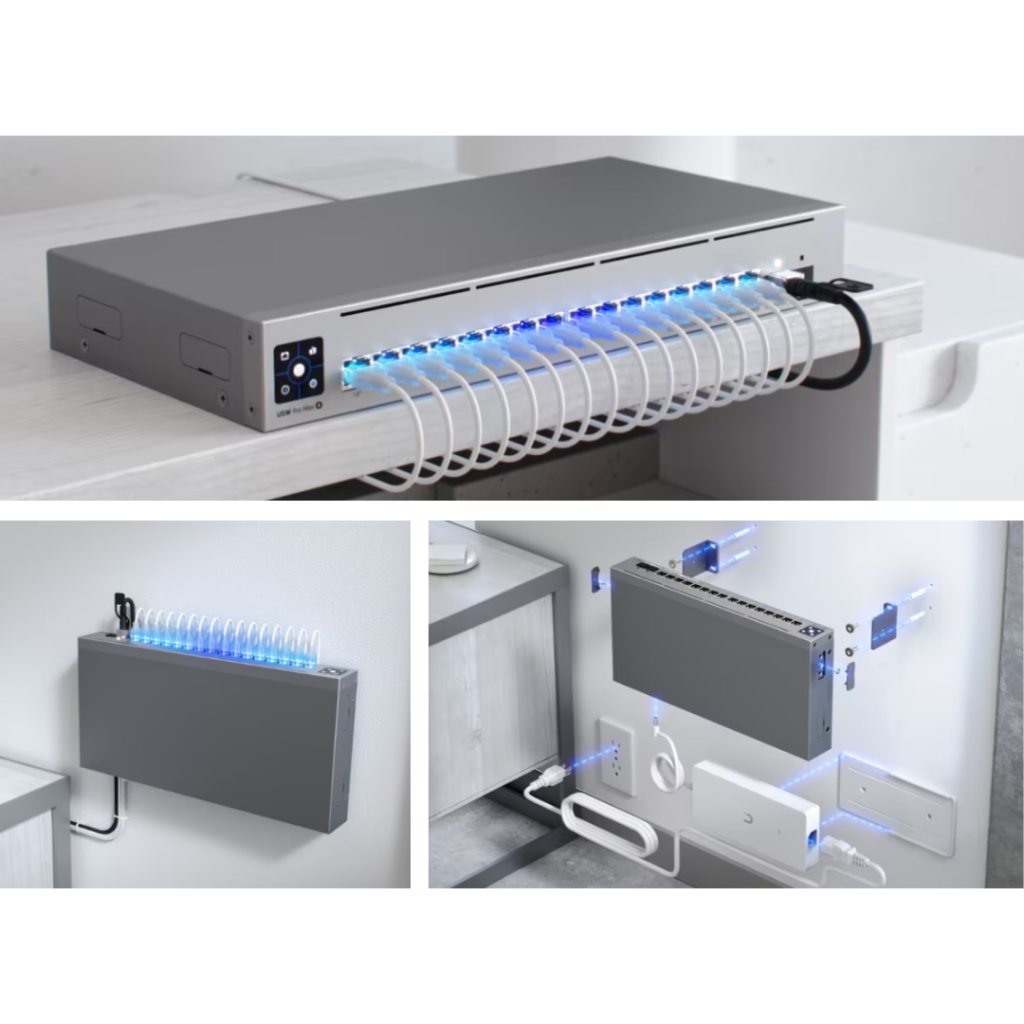

Rack mount (1U), desktop, wall
Etherlighting™:
✓
Performance
Switching Capacity:
84 Gbps
Total Non-Blocking Throughput:
42 Gbps
Forwarding Rate:
62 Mpps
Supported VLANs:
1,000
MAC Address Table Size:
16,000
L3 Table Size
– ARP Entries:
6,000
– IPv4 Routes:
512
– IPv4 Static Routes:
256
Packet Buffer Size:
1.5MB
Access Lists
– IPv4:
128
– MAC:
128
Layer 3 Features
DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
Layer 2 Features
LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override
Hardware
PoE Ports
– PoE+:
12
– PoE++:
4
Max. PoE Wattage per Port by PSE
PoE:
15.4W
PoE+:
32W
PoE++:
64W
Max. Power Consumption:
25W (Excluding PoE Output)
210W (Including PoE Output)
Power Method:
AC Adapter
Power Input Method:
AC input
Power Supply:
AC/DC, external, 210W
Supported Voltage Range:
50–54V DC
Management:
Ethernet
AR
Heat Dissipation:
68 BTU/hr (Excluding PoE Output)
Weight:
2.1 kg (4.6 lb)
Enclosure Material:
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2″)
LCM Display:
1.3″ touchscreen
Ambient Operating Temperature:
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity:
10 to 90% noncondensing

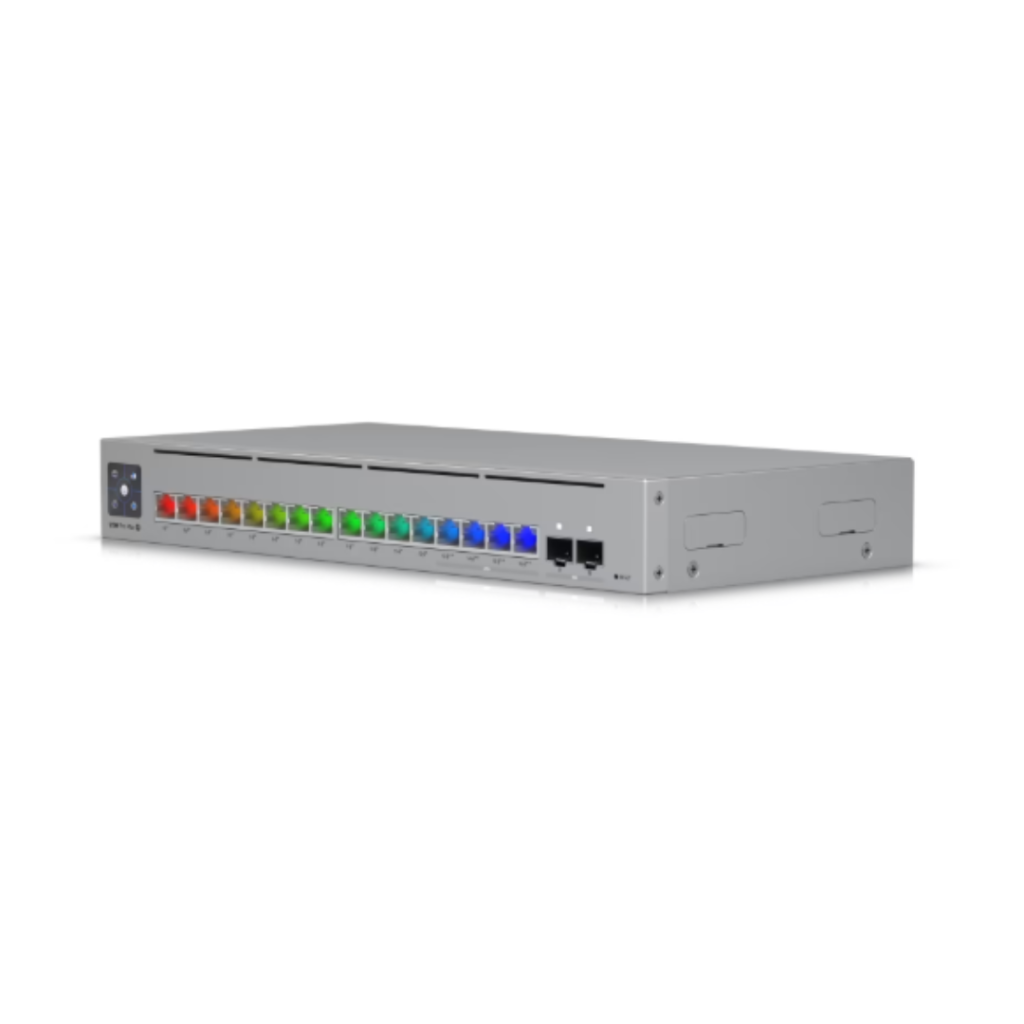

Etherlighting™
– Ethernet:
✓
– SFP+:
✓
NDAA Compliant:
✓
Certifications:
CE, FCC, IC, Anatel: 08953-24-08356
Software
Application Requirements
– UniFi Network:
Version 8.1.127 and later

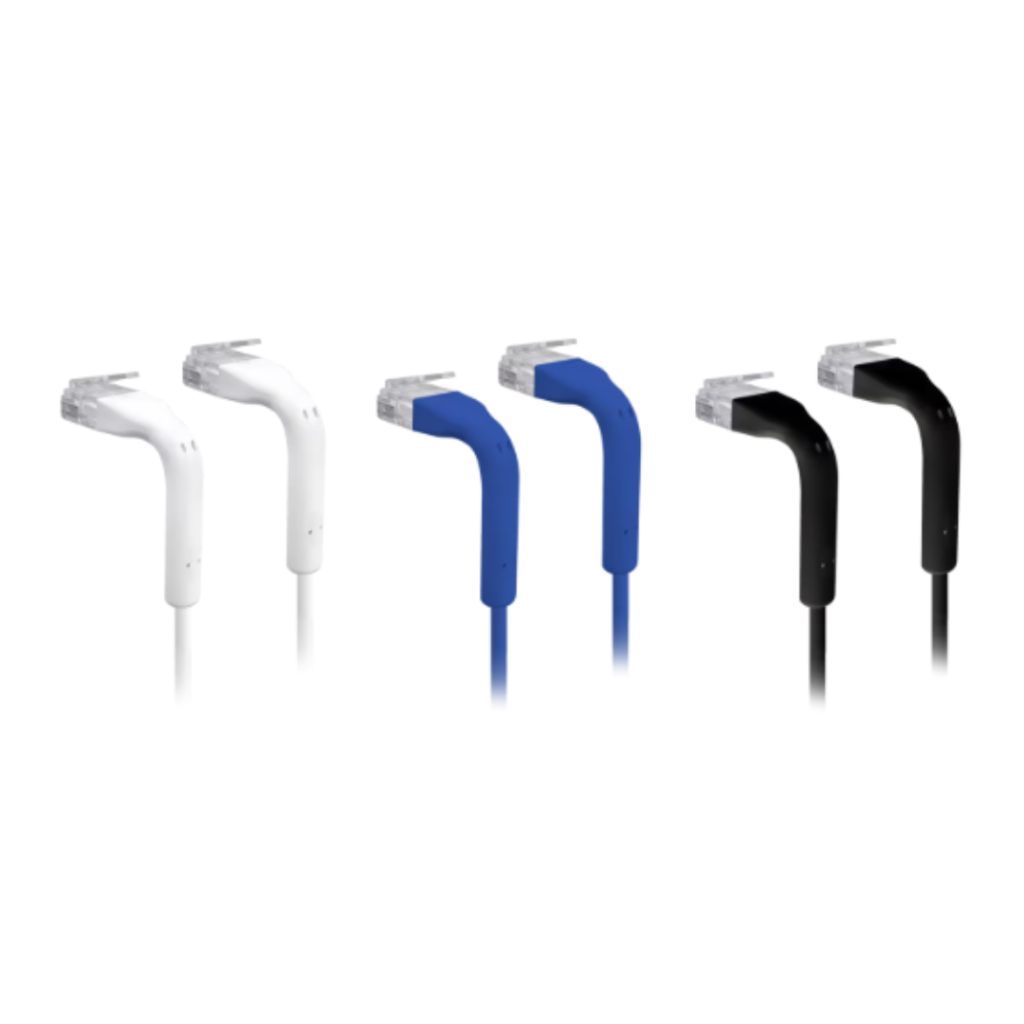

UniFi Patch Cable
U-Cable-Patch-RJ45
Ultra-thin patch cable with GbE support and flexible, bendable boots for enhanced installation versatility.
Bendable booted RJ45
3 mm outer diameter
Cable length: 0.1 to 8 m
