Description
Technical Specifications
| Model |
BrainSphere P150 F10
|
| Part Number |
–
|
| Operating System |
Microsoft® Windows 11 Pro
|
| Processor |
Intel® Core™ Ultra 5 Processor 225
|
| Performance-Cores |
6 Cores
|
| Efficient-Cores |
4 Cores
|
| Total Threads |
10 Threads
|
| P-Core Base Frequency |
3.3 GHz
|
| E-Core Base Frequency |
2.7 GHzz
|
| Cache |
20 MB Intel® Smart Cache
|
| Memory |
(1x) 16GB DDR5-5600 non-ECC UDIMM
NOTE: 4 DIMM slots (Dual channel) Up to 192GB, non-ECC DDR5 5600 MHz UDIMM |
| Chipset |
Intel® Z890 Chipset
|
| Network Controller |
1Gb/s LAN Port (Intel® I219V)
2.5Gb/s LAN Port (Intel® I226-V) |
| Audio Controller |
5.1 CH HD Audio (Realtek® ALC897)
|
| SATA RAID |
RAID support (via BIOS)
|
| Storage |
256GB PCIe M.2 NVMe (2x M.2 slots)
2TB 3.5″ SATA 7200RPM (4x 3.5″ slots) |
| Graphics |
nVidia RTX 5060 8GB GDDR7, 3x DP, HDMI
|
| Power Supply |
850W Multiple output 24 pins, 80PLUS® Gold PSU
|
| Form Factor |
Tower (56L)
|
| Optical Drive |
N/A
|

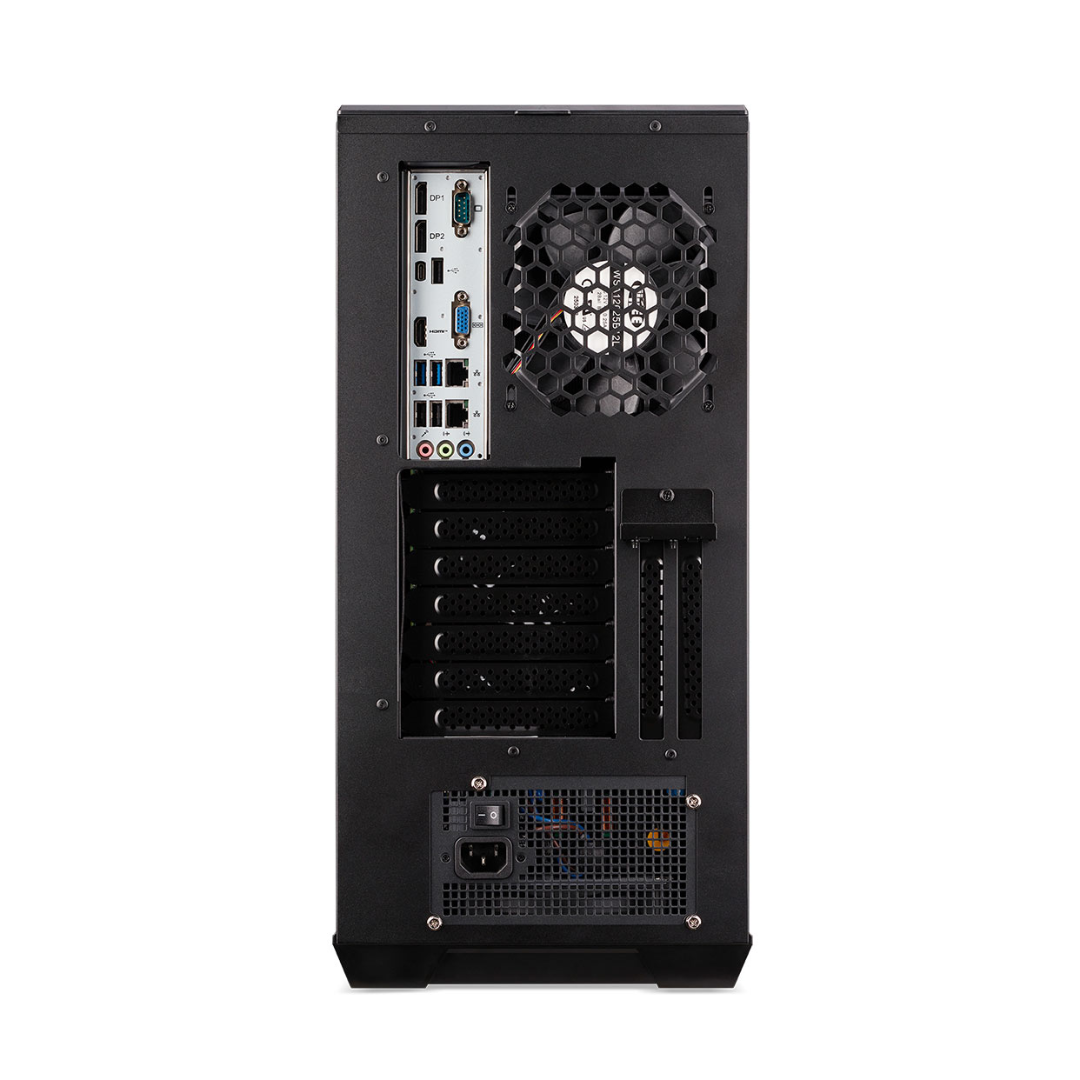

| Ports |
Front:
1x USB3.2 Gen2x1 10Gbps Type-C port 2x USB3.2 Gen1 Type-A Ports 2x Audio jacks Rear: |
| Others |
Altos USB Keyboard and Mouse
|
| Dimension (D x W x H) |
470 (D) x230 (W) x 518.5 (H) mm
|
| Warranty |
3 years Parts – 3 years Labor – 3 Years onsite (w/ 24 x 7 Phone Support)
|
*Specifications are subject to change without prior notice.
