Description
Technical Specifications
| Model |

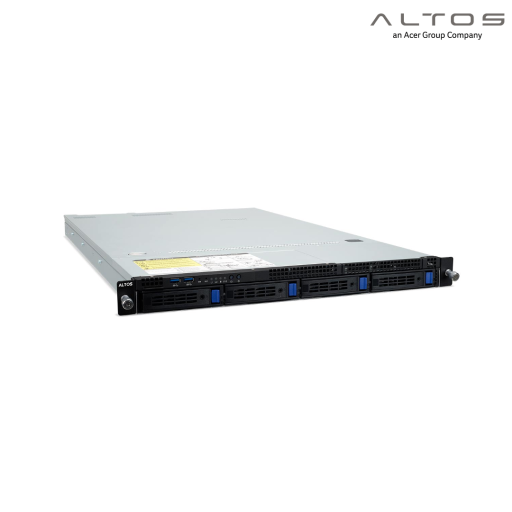

Altos BrainSphere™ R369 F4 (10SFF, 800W 1+1)
|
| Processor |
(1x) Intel® Xeon® Silver 4210R 10C/20T (2.40 GHz) Processor
|
| Cache Memory |
13.75MB Cache
|
| Memory |
(1x) 16GB DDR4-3200 ECC RDIMM
NOTE: Runs at 2400 due to processor limitation. NOTE: 24 DIMM slots [12 DIMM slots per processor socket] |
| Network Controller |
Dual 1GbE LAN ports with Intel® I350-AM2 (embedded)
|
| Storage Controller |
8-port 12Gb/s SAS RAID Card (0/1/10/5/6/50/60) with Cache Protection Module
|
| Hard Drive |
(1x) 2.5″ 1.2TB SAS 10KRPM Hard Drive
|
| Internal Storage |

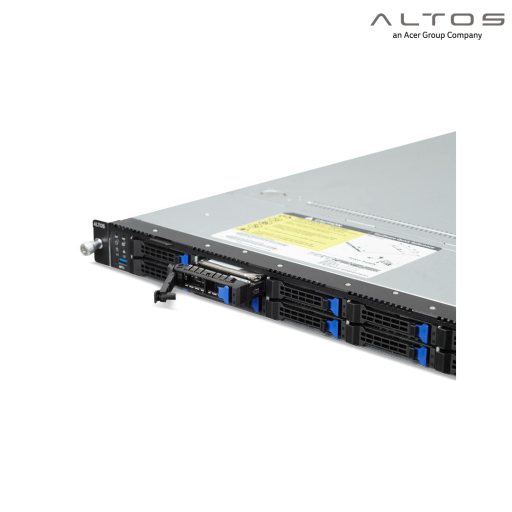

8 x 2.5” SAS + 2 x 2.5” bay SATA HDD/SSD
|
| Graphics |
ASPEED AST2500 BMC
|
| Power Supply |

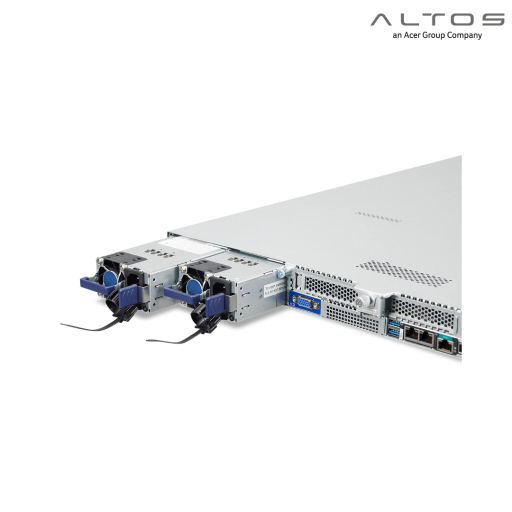

2 x 800W redundant power supply, 80 PLUS Platinum
|
| Management |
IPMI2.0, KVM with dedicated LAN, Smart Console remote monitoring
|
| Form Factor |
1U, Rackmount Server with Sliding Rail Kit
|
| I/O Ports |
Front: 1 x USB3.0 port

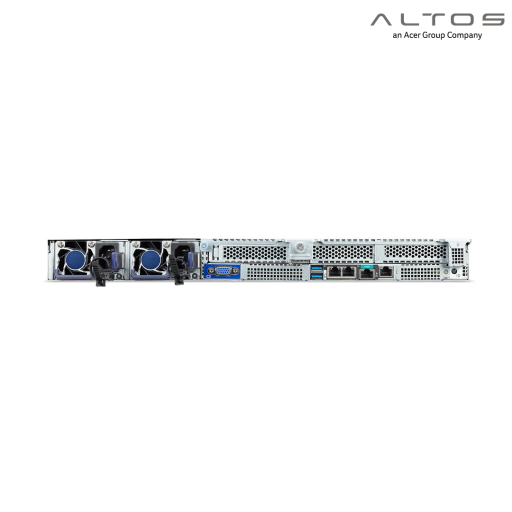

Rear: 2 x USB 3.0 ports, 1 x VGA port, 1 x COM port (RJ45 Type), 1 x RJ45 management LAN port, 2 x RJ45 LAN ports |
| Dimension |
730 x 438 x 43.5 mm approximately
|
| Warranty |
3 Years Parts – 3 years Labor – 3 Years On Site (w/ 24×7 Phone Support)
|
*Specifications may change without prior notice.
