Technical Specifications
| Model |
9SX3000IR
|
| Rating |
3000 VA / 2700W
|
| Form Factor |

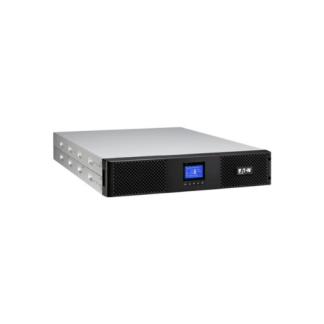

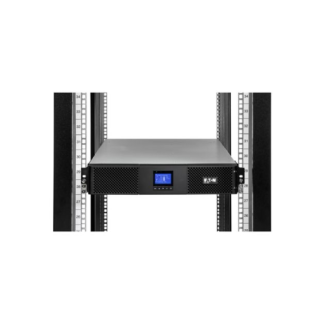

Tower or Rackmount 2U
|
| Electrical Characteristics | |
| Technology |
ON-LINE double conversion with automatic bypass and Power factor correction system
|
| Nominal Voltage |
200 / 208 / 220 / 230 / 240 V
|
| Input Voltage Range |
200 – 276 V without derating
(up to 140 – 276 V with derating) |
| Input Frequency Voltage |
40 – 70 Hz, 50 / 60 Hz autoselection, frequency converter mode
|

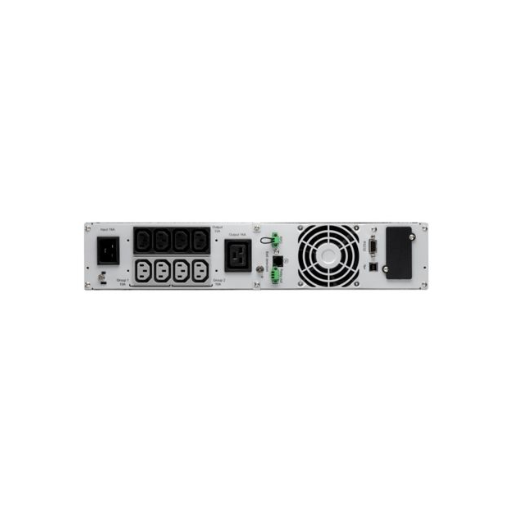

| Connections | |
| Input |
1 IEC C20 (16A)
|
| Outputs |
8 IEC C13 (10A) sockets
1 IEC C19 (16A) socket |
| Switched outlet group |
2 outlet groups
|
| Batteries | |
| Typical backup times * | |
| 9SX 3000 (Rack) |
57 @ 300W
33 @ 500W 20 @ 800W 12 @ 1200W 7 @ 1800W 4 @2500W |
| 9SX 3000 (Rack) + 1 EBM/+4 EBM |
220 / 820 @ 300W;
125 / 490 @ 500W; 77 / 280 @ 800W; 50 / 180 @ 1200W; 32 / 121 @1800W; 22 / 81 @2500W |
| Battery Management |
ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units
|
| Communications | |
| Communication ports |
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
|
| Communication slot |
1 slot for Network-M2, INDGW-M2 or Relay-MS cards
|
| Operating Conditions, Standards and Approvals | |
| Operating temperature |
0 to 40°C
|
| Noise level |
45 dB
|
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2
|
| EMC |
IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
|
| Approvals & Markings |
CE / CB report (TUV) / cULus / EAC /RCM
|
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) |
86.5 x 438 x 608
|
| UPS Weight (kg) |
26.5 kg
|
| EBM dimensions (mm) |
86.5 x 438 x 608
|
| EBM weight (kg) |
40.5
|
| Customer service & support | |
| Warranty |
3 Years
|
* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
In the interests of continuous product improvement, all specifications are subject to change without notice
