Description
Description

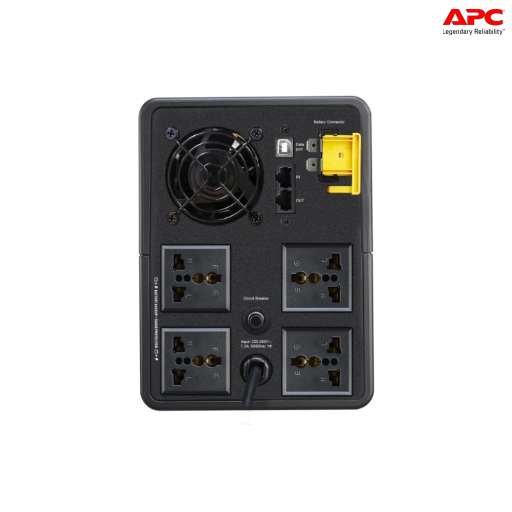

The 2200VA tower UPS has 4 total outlets, all of which provide battery backup and surge protection. The UPS has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.
Main
| Main Input Voltage |
230 V |
| Main Output Voltage |
230 V |
| Rated power in W |
1200 W |
| Rated power in VA |
2200 VA |
| Product or component type |
Uninterruptible power supply (UPS) |
| output connection type |
4 universal |
| Cable length |
1.2 m |
| Number of cables |
1 |
| Battery type |
Lead-acid battery |
| Range of product |
Back-UPS |
Batteries & Runtime
| Run Time |
View Runtime Graph |
| Efficiency |
View Efficiency Graph |
| Number of battery filled slots |
0 |
| Number of battery free slots |
0 |
| Battery recharge time |
8 h |
| Battery voltage |
24 V |
| Battery life |
3…5 year(s) |
| Replacement battery |
APCRBC177
|
| Battery graph comments |
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime |
0 |
General
| Provided equipment |
user manual |
| Number of power module free slots |
0 |
| Number of power module filled slots |
0 |
| Redundant |
No |
Physical
| Colour |
Black |
| Height |
190 mm |
| Width |
140 mm |
| Depth |
390 mm |
| Net weight |
12.3 kg |
| Mounting preference |
No preference |
| Mounting mode |
Not rack-mountable |
| Two post mountable |
0 |
| USB compatible |
No |
Input
| Network frequency |
50/60 Hz +/- 5 Hz auto-sensing |
| Input voltage limits |
140…300 V |
| Input Power Factor at Full Load |
0.54 |
Output
| Maximum configurable power in W |
1200 W |
| Output frequency |
50/60 Hz +/- 1 Hz sync to mains |
| UPS type |
Line interactive |
| Wave type |
Stepped approximation to a sinewave |
| Full load runtime |
00:01:00 1200 W |
| Half load runtime |
00:08:30 600 W |
| Maximum configurable power in VA |
2200 VA |
| Transfer time |
6 ms typical : 10 ms maximum |
Conformance
| Product certifications |
CE |
| Standards |
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018 |
Environmental
| Ambient air temperature for operation |
0…40 °C |
| Relative humidity |
0…95 % non-condensing |
| Operating altitude |
0…3000 m |
| Ambient air temperature for storage |
-15…40 °C |
| Storage Relative Humidity |
0…95 % non-condensing |
| Storage altitude |
0…3000 m |
| Acoustic level |
40 dBA |
| IP degree of protection |
IP20 |
Communications & Management
| Control panel |
LED Status display with on line : on battery |
Surge Protection and Filtering
| Surge energy rate |
273 J |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
29.7 cm |
| Package 1 Width |
49.5 cm |
| Package 1 Length |
23.5 cm |
| Package 1 Weight |
13.3 kg |
| SCC14 |
10731304410734 |
Contractual warranty
| Warranty |
2 years repair or replace |
