Description
Specifications
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|
|
Run time for load
W Min-max: 270-2700 W
|
5min 4s
|
|---|---|
|
Max. Capacity Used
|
100 % |
| Main input voltage | 230 V AC 1 phase |
| Other input voltage | 220 V 240 V |
| Input connection | IEC 60320 C20 CEE 7/7 BS 1363 British |
| Efficiency at full load | 151…302 V adjustable 160…286 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |

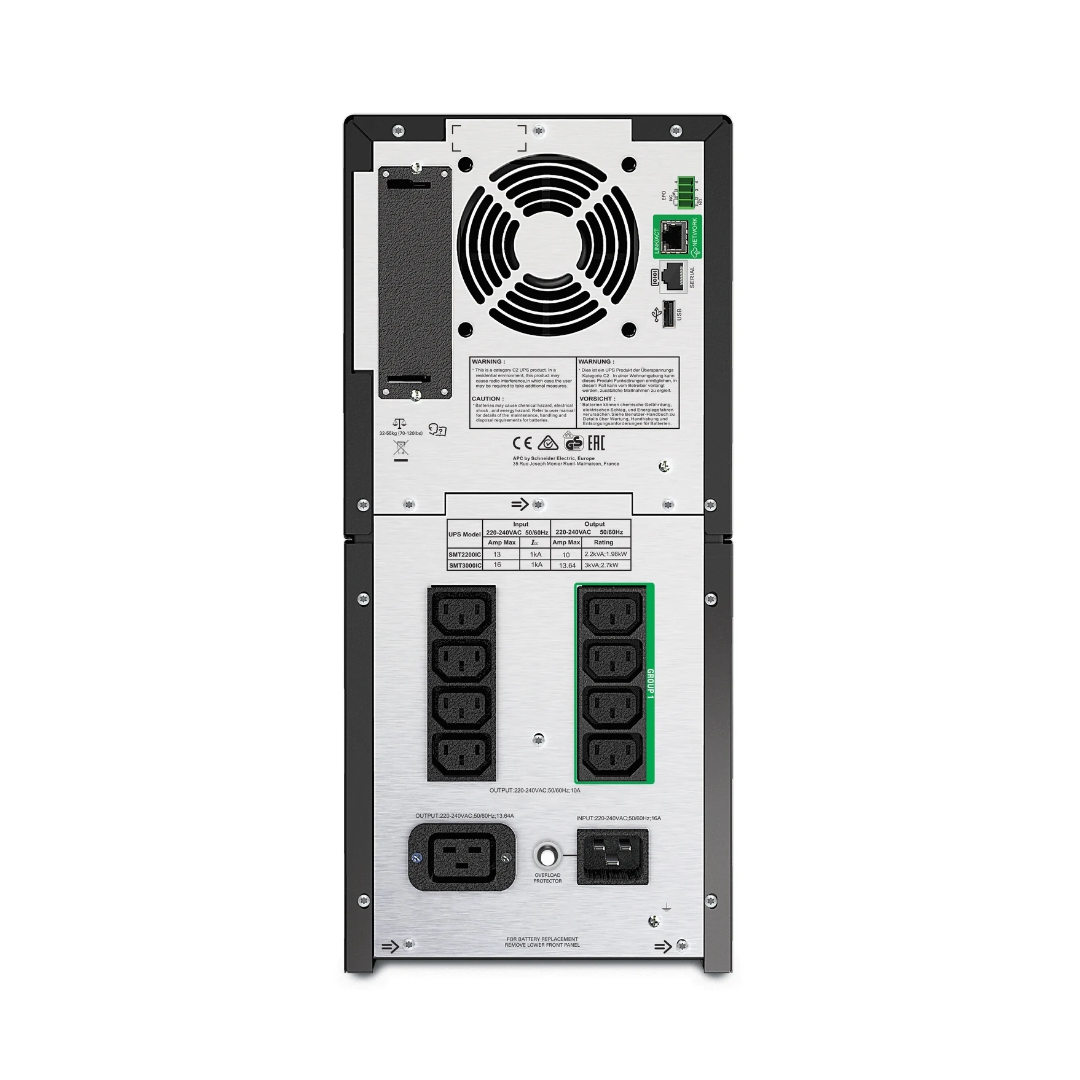

| Output connection | 8 IEC 60320 C13 2 IEC Jumpers 1 IEC 60320 C19 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery |
|
| Run Time |
|
|---|---|
| Efficiency |
|
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| UPS connectivity | Serial port USB port SmartConnect port Available expansion slot |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Surge energy rating | 365 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Color | Black |
| Height | 435 mm |
| Width | 197 mm |
| Depth | 544 mm |
| Product weight | 52.5 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | 有 |
| Mounting mode | Tower |
| Provided equipment | USB cable |
| Number of power modules | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Additional specification | Cloud-enabled monitoring |
| Redundant | 無 |
| Range of product | Smart-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certification | CE EAC RCM VDE UK PSTI |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 53 dBA |
| Heat dissipation | 375 Btu/h |
| Operating altitude | 0…10000 ft |
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 271 W rated |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 69.901 cm |
| Package 1 Width | 38.100 cm |
| Package 1 Length | 76.200 cm |
| Package 1 Weight | 63.548 kg |
| Warranty (in months) | 24 Battery|36 UPS |
|---|
