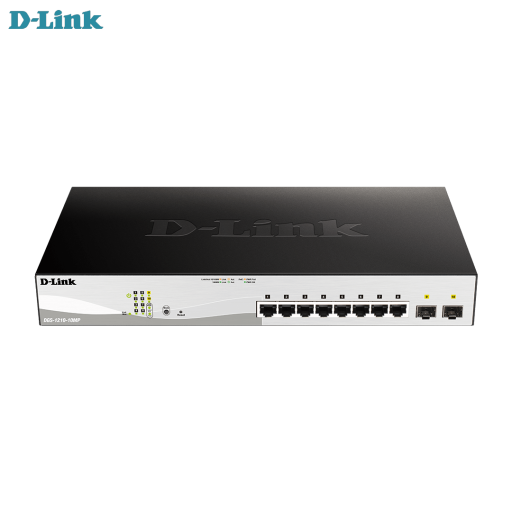

D-Link 10-Port Gigabit Smart Managed PoE (130W) Switch

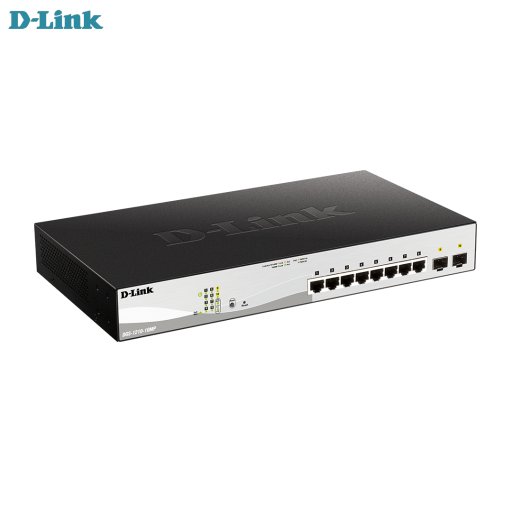

D-Link 10-Port Gigabit Smart Managed PoE (130W) Switch - Image 2

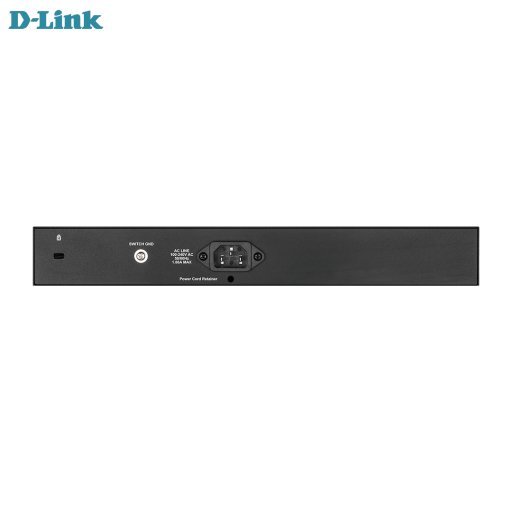

D-Link 10-Port Gigabit Smart Managed PoE (130W) Switch - Image 3

D-Link 10-Port Gigabit Smart Managed PoE (130W) Switch

₱14,550.00

DGS-1210-10MP

  • 8 x 10/100/1000BASE-T PoE ports
  • 2 x Gigabit SFP ports
  • Advanced L2 switching and security features
  • L2+ Static Routing
  • Optional “standard mode” or “surveillance mode” management user interface
  • 130W PoE budget
Categories: , Tags: , , , , , , Brand:

Description

Technical Specifications

Model
DGS-1210-10MP
Hardware Version
• Fx
Mounting Options
Desktop or 19” Rack Mount (mounting brackets included)

General
Interfaces
8 10/100/1000BASE-T PoE
2 100/1000 Mbps SFP ports
Port Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
• IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3x Flow Control
• IEEE 802.3af/at compliance (for PoE ports)
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode
Full/Half-duplex for 10/100 Mbps
Full-duplex for 1000 Mbps
Media Interface Exchange
Auto MDI/MDIX adjustment for all twisted-pair ports

Performance
Switching Capacity
20 Gbps
Transmission Method
Store-and-forward
MAC Address Table
8K entries
Static MAC Addresses
256 entries
Maximum 64 Byte Packet
Forwarding Rate
14.88 Mpps
Packet Buffer Memory
4.1 Mbits
CPU Memory
DDR3 128 MB
Flash Memory
32 MB

PoE
PoE Capable Ports
Ports 1 to 8
Power Budget
130 W
LEDs
Power (per device)
Link/Active/Speed (per port)
PWR Max

Physical/Environmental


Power Input
100 to 240 V AC 50/60 Hz
internal universal power supply
Maximum Power Consumption
(PoE enabled)
152.3 W/100 V
148.7 W/240 V
Maximum Power Consumption
(PoE disabled)
8.5 W/100 V
9.4 W/240 V
Standby Power Consumption
4.3 W/100 V
5.2 W/240 V
Acoustics
0 dB(A)
Heat Dissipation
519.51 BTU/hr (100 V)
507.23 BTU/hr (240 V)
Fans
N/A
Operating Temperature
-5 to 50°C (23 to 122°F)
Storage Temperature
-20 to 70°C (-4 to 158°F)
Operating Humidity
0% to 95% relative humidity
Storage Humidity
0% to 95% relative humidity
Dimensions (L x W x H)
330 x 180 x 44 mm
(12.99 x 7.09 x 1.73 in)
Weight
1.77 kg (3.90 lbs)
Certifications
EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CQC (only for specific models)
Safety: CB, UL, BSMI, LVD, CQC (only for specific models)
MTBF
1,274,005 hours

Software


L2 Features
MAC Address Table
IGMP Snooping
IGMP v1/v2 Snooping
Loopback Detection
802.3ad Link Aggregation
LLDP
LLDP-MED
Jumbo Frame
Spanning Tree Protocol
Flow Control
Port Mirroring
Multicast Filtering
Configurable MDI/MDIX
VLAN
802.1Q
VLAN Group
Configurable VID from 1 – 4094
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN
Quality of Service
(QoS)

802.1p Quality of Service
8 queues per port
Queue Handling
Bandwidth Control
QoS based on:

  • 802.1p priority queues
  • DSCP
  • MAC address
  • EtherType
  • IP address
  • Protocol type
  • ToS
  • IP preference
  • Pv6 Traffic Class
  • TCP/UDP port
L3 Features
IP interface
IPv6 Neighbor Discovery (ND)
Static routing
Access Control List (ACL)

Max. 50 access lists
Max. 768 rules shared by IPv4, MAC, and IPv6
Each rule can only be associated with a single port
ACL based on

  • MAC address
  • IP address
    IPv6 address
Security Features
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
Traffic segmentation
SSH v2
TLS v.1.3
DoS attack prevention
802.1X Port-based Access Control
Port Security
ARP Spoofing Prevention
DHCP Server Screening
IP-MAC-Port Binding (Smart Binding)
AAA
802.1X Authentication
IPv6 RADIUS server
Support MD5 authentication
OAM
Cable diagnostics
Factory reset
Management
Web-based GUI
D-Link Network Assistant Utility
Compact CLI
Telnet Server
TFTP Client
Configurable MDI/MDIX
SNMP
SNMP Trap
Backup/upgrade firmware
Smart Wizard
Upload/download configuration file
BootP/DHCP Client
System Log
SNTP
ICMP v6
IPv4/v6 Dual Stack
DHCP Auto Configuration
Time setting
RMONv1
Trusted host
Dual image
Dual configuration
Green V3.0 Technology

Power Saving by:

  • Link Status
  • Time-based PoE: PoE ports can be turned on/off by port
    or system through schedule
  • System hibernation
  • Port shut off
  • Cable length detection
MIBs
RFC1212 Concise MIB Definitions
RFC1213 MIBII
RFC1215 MIB Traps Convention
RFC1493 Bridge MIB
RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB
RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905,
RFC1906, RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2
MIB
RFC271, RFC1757, RFC2819 RMON MIB
RFC2021 RMONv2 MIB
RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like
MIB
RFC2674 802.1p MIB
Interface Group MIB
RFC2618 RADIUS Authentication Client MIB
RFC4022 MIB for TCP
RFC4113 MIB for UDP
RFC2389 MIB for Diffserv.
Private MIB
PoE MIB
DDP MIB
LLDP-MED MIB
RFC Standards
RFC791 IP
RFC768 UDP
RFC793 TCP
RFC792 ICMPv4
RFC2463, RFC4443 ICMPv6
RFC826 ARP
RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible
Authentication Protocol (EAP)
RFC2573 SNMP Applications
RFC2461, RFC4861 Neighbor Discovery for IPv6
RFC2462, RFC4862 IPv6 Stateless Address Autoconfiguration (SLAAC)
RFC2464 IPv6 over Ethernet and definition
RFC4291 IPv6 Addressing Architecture
RFC2893, RFC4213 IPv4/IPv6 dual stack function
