Description
Technical Specifications
| Model |
5E1600UI
|
| Rating |
1600 VA / 900 W
|
| Form Factor |
Tower
|
| Electrical Characteristics | |
| Technology |
Line Interactive
|
| Input Nominal Voltage | 220 – 240 V |
| Input Voltage windows without using battery |
140 – 300 V
|
| Output Voltage |
230V (adjustable to 220V/230V/240V)
|
| Input Frequency Range |
50 / 60 Hz (46 – 65 Hz working range)
|
| Connection | |
| Output connection (FR, DIN/IT, BS models) |
4 national outlets
|
| Output connection (IEC models) |

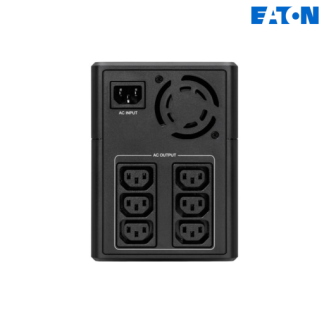

6 IEC C13 outlets
|
| Battery | |
| Typical backup time for 1 PC |
42 min
|
| Typical backup time for 2 PC |
19 min
|
| Typical backup time for 3 PC |
8 min
|
| Typical backup time for 4 PC |
–
|
| Battery Management |
Constant battery recharge, cold start
|
| Communication | |
| Communication Port |
1 USB port
|
| Eaton UPS Companion software |
Available on eaton.com/downloads
|
| Operating conditions, Standards and Approvals | |
| Operating temperature |
0 to 40°C
|
| Noise level |
< 25dBA (line mode)
< 40dBA (battery or AVR mode) |
| Certifications |
EN IEC 62040-1:2019 ; EN 62040-2:2006 ; IEC 62040-2: 2016, IEC 62040-3: 2021 ; CE ; EAC ; UKCA ; Cm ; Ukr
|
| Compliances |
EU Directives : LVD (CB report); EMC ; RoHS ; WEEE ; Packaging ; Batteries
|
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) |
330 x 180 x 133
|
| UPS Weight (kg) |
9.3
|
| Customer Service and Support | |
| Warranty |
3 Years
|
* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc
In the interests of continuous product improvement, all specifications are subject to change without notice.
