Technical Specifications

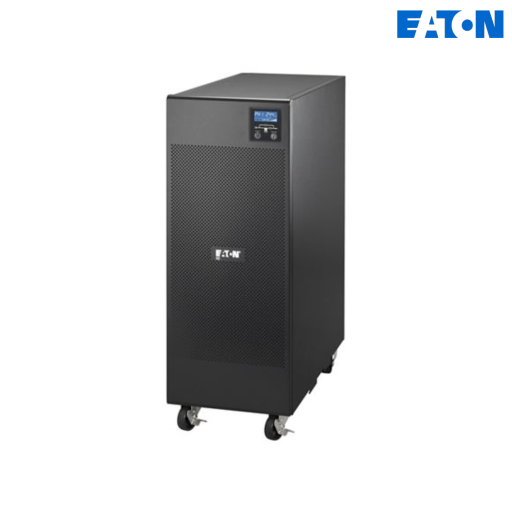

| Model |
9E10Ki
|
| Rating (VA/W) |
10000 VA / 8000 W
|
| Form Factor |
Tower
|
| Electrical Characteristics | |
| Technology |
Online double conversion
|
| Input Voltage |
208 / 220 / 230 / 240V
|
| Input voltage range without using batteries |
176-276V without derating (up to 110-276V with derating)
|
| Output Voltage |
220V/230V/240V ±2 %
|
| THDU |
< 3%
|
| Input Frequency range |
45Hz-66Hz, 50/60Hz auto selection
|
| Efficiency |
Up to 93% in Online mode
97% in ECO mode |
| Short Circuit Current |
82A
|
| Overload capacity |
105%-110%: 5min
110%-130%: 1min 130%-150%: 10s >150%: 100ms |
| Connections | |
| Input |
Terminal block
|
| Output |
Terminal block
|
| Typical backup times at 50% / 100% Load (minutes) | |
| 9E |
15 / 9
|
| 9E + 1 EBM |
60 / 36
|
| 9E + 4 EBM |
170 /110
|
| Communication | |
| Communication ports |
1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
|
| Communication slot |
1 slot for Network-M2, INDGW-M2 or Relay-MS cards
|
| Software |
Intelligent Power Software
|
| Operating conditions, Standards and Approvals | |
| Operating temperature |
0 to 40°C
|
| Noise level |
< 55 dB
|
| Safety |
IEC/EN 62040-1
|
| EMC, Performance |
IEC/EN 62040-2
|
| Approvals |
CE, CB report (TUV)
|
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) |
612.9 x 708.5 x 262.4
|
| UPS Weight (kg) |
85.4
|
| EBM Catalog Number |
9EEBM240
|
| EBM Unit |
1
|
| EBM dimensions (mm) per Unit |
579.4 x 708.5 x 262.4
|
| EBM weight (kg) per unit |
132
|
| UPS with supercharger (and no batteries) dimensions (mm) |
612.9 x 708.5 x 262.4
|
| UPS with supercharger (and no batteries) weight (kg) |
28.9
|
| Customer service & support | |
| Warranty |
3 Years on UPS
3 Years on Battery |
* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
** 9EEBM480 consist of 2 units of 9EEBM240
+
Dimensions for 9EEBM240
In the interests of continuous product improvement, all specifications are subject to change without notice.
