Description

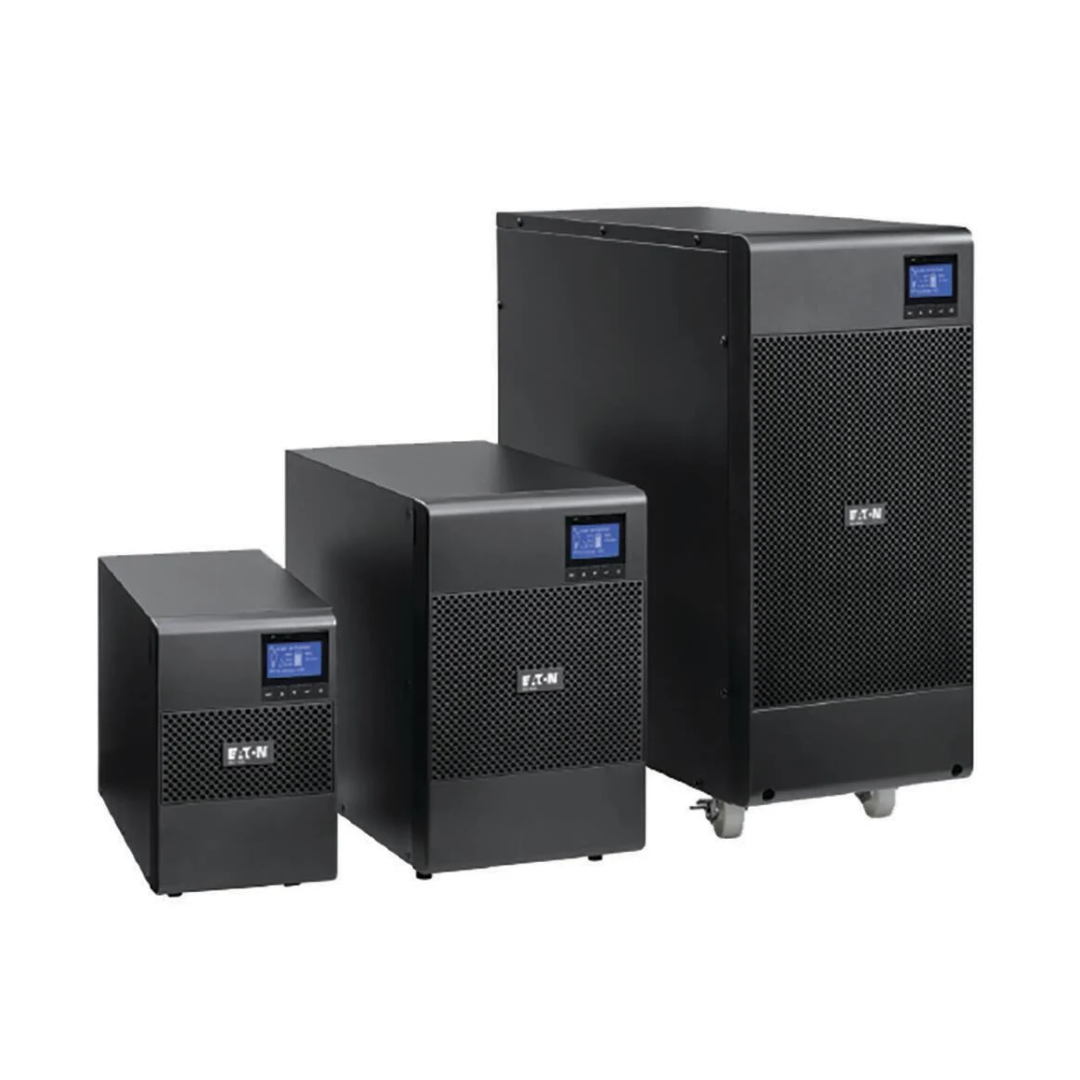

Eaton 9SX3000i Tower

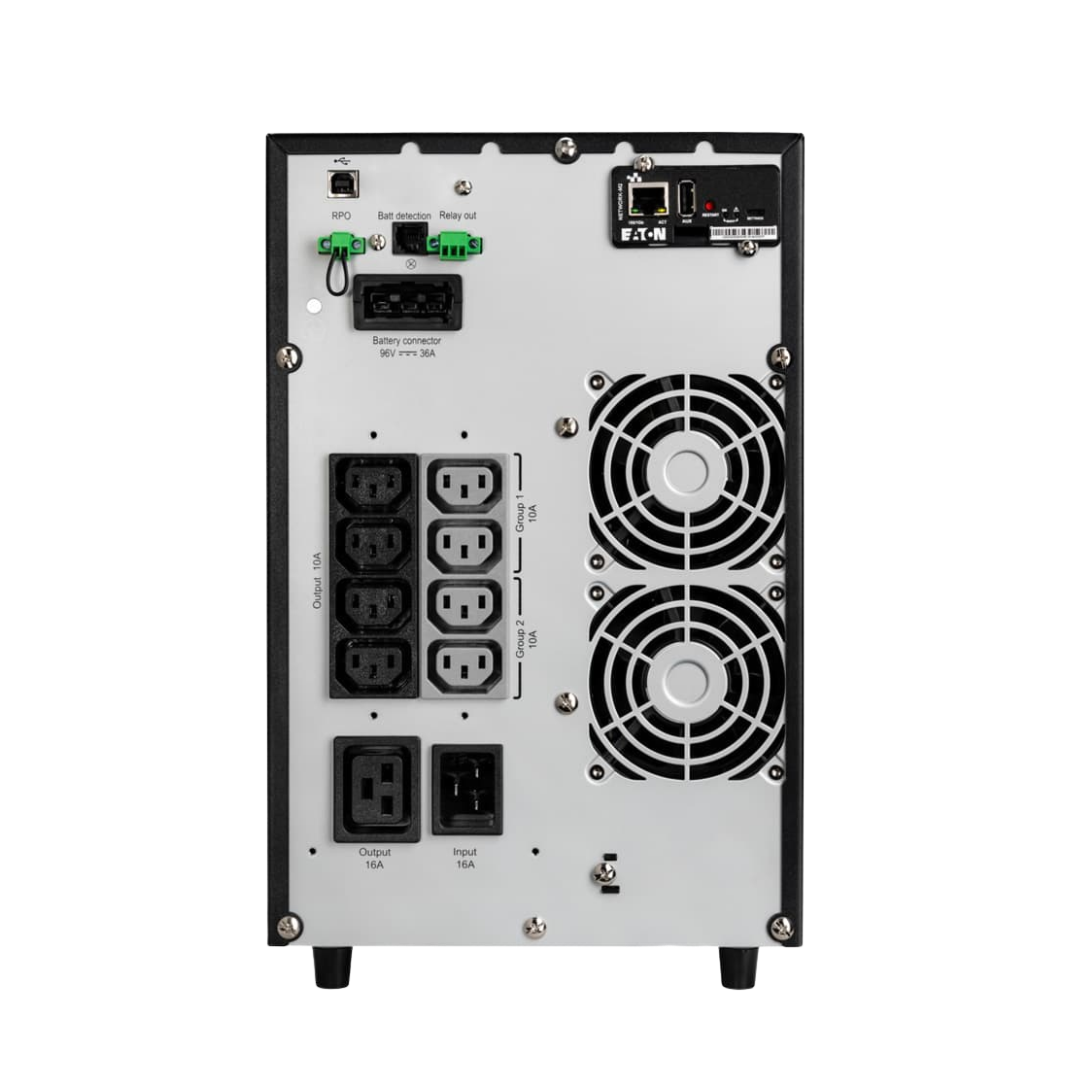

The Eaton 9SX UPS (9SX3000I) features a total of 9 rear AC outlets consisting of eight IEC C13 sockets (10A) and one IEC C19 socket (16A).
Technical Specifications
| Model |
9SX3000i
|
| Rating |
3000 VA / 2700W
|
| Form Factor |
Tower
|
| Electrical Characteristics | |
| Technology |
On-line double-conversion with Power Factor Correction (PFC) system
|
| Nominal Voltage |
200/208/220/230/240 V
|
| Input Voltage Range |
200-276V without derating (up to 140-276V with derating)
|
| Input Frequency Voltage |
40-70Hz, 50/60Hz auto selection, frequency converter mode
|
| Connections | |
| Input |
1 IEC C20 (16A)
|
| Outputs |
8 IEC C13 (10A) sockets
1 IEC C19 (16A) socket |
| Switched outlet group |
2 outlet groups
|
| Batteries | |
| Typical backup times * (minutes)/load | |
| 9SX 3000 (Tower) |
78 @ 300W
45 @ 500W 29 @ 800W 17 @ 1200W 10 @ 1800W 6 @ 2500W |
| 9SX 3000 (Tower) + 1 EBM/+4 EBM |
290/1100 @ 300W;
175/630 @ 500W; 108/421 @ 800W; 68/255 @ 1200W; 45/168 @ 1800W; 30/112 @ 2500W |
| Battery Management |
ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units
|
| Communications | |
| Communication ports |
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
|
| Communication slot |
1 slot for Network-M2, INDGW-M2 or Relay-MS cards
|
| Operating Conditions, Standards and Approvals | |
| Operating temperature |
0 to 40°C
|
| Noise level |
45 dB
|
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2
|
| EMC |
IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
|
| Approvals & Markings |
CE /CB report (TUV) / cULus / EAC / RCM / BIS (Tower models only) / KCC (Tower models only)
|
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) |
346 x 214 x 412
|
| UPS Weight (kg) |
33.4
|
| EBM dimensions (mm) |
346 x 214 x 412
|
| EBM weight (kg) |
48.7
|
| Customer service & support | |
| Warranty |
3 Years on UPS
3 Years on Battery |
* Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc.
| Part Numbers | |
| EBM Tower |
9SXEBM96T
|
| 2m battery connection cable (Tower only) |
EBMCBL96T
|
In the interests of continuous product improvement, all specifications are subject to change without notice
