Description
Options & Consumables:
Roller Assembly Kit:
Durability: 200,000 scans
Order Code: B12B819791
Cleaning Kit:
B12B819291
Scanner:
Scanner Type:
A3 flatbed colour document scanner with one-pass ADF
Sensor Type:
Colour Contact Image Sensor (CIS) x 2
Scanning Method:

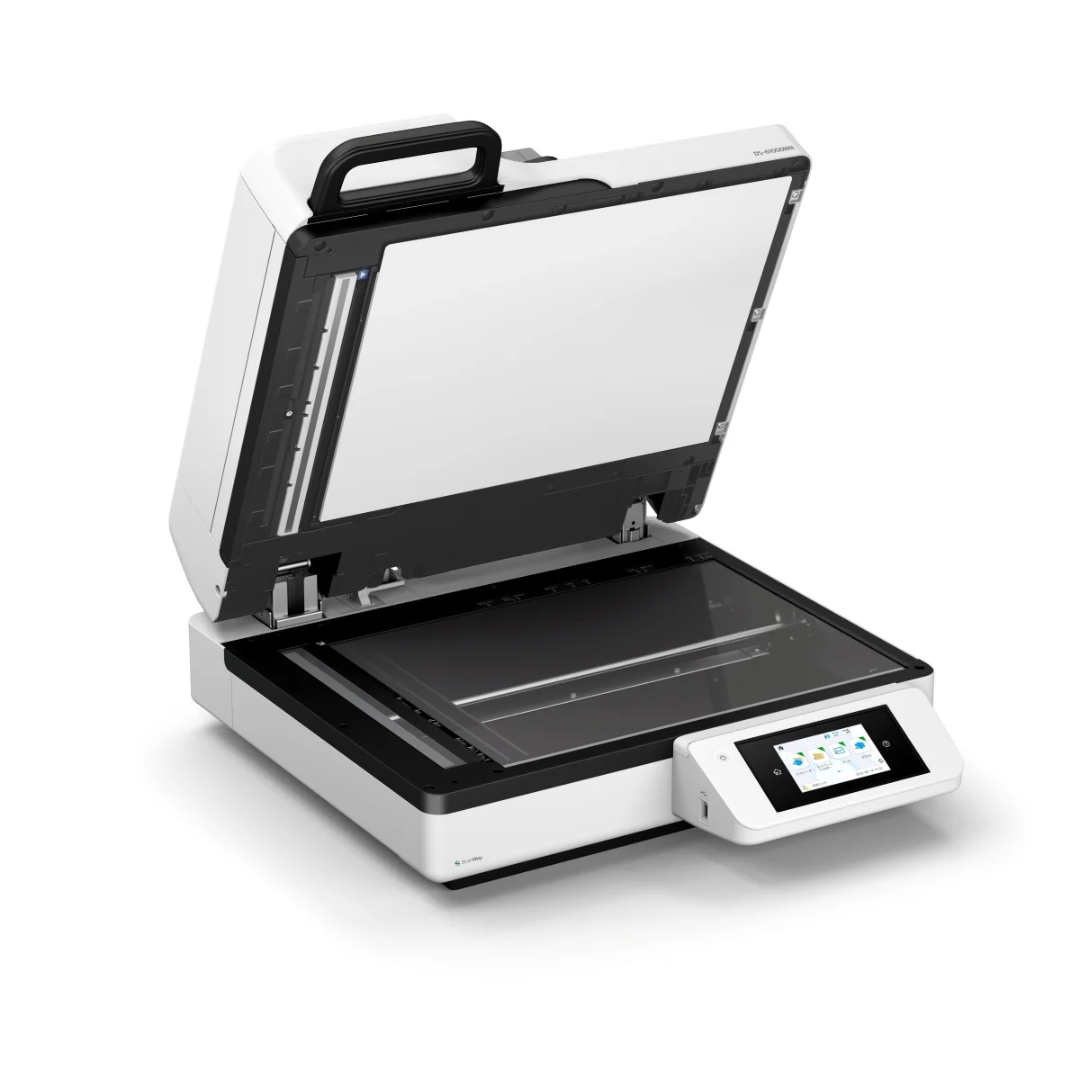

Flatbed: Fixed document and moving carriage
ADF: Fixed carriage and moving document
Light Source:
White LED x 4
Optical Resolution*1:
Flatbed: 600 x 600 dpi
ADF: 600 x 600 dpi
Output Resolution:
50 – 1,200 dpi (in 1 dpi increments)
Bit Depth:
Colour: 30-bit input, 24-bit output
Grayscale: 10-bit input, 8-bit output
Black & White: 10-bit input, 1-bit output
Supported Paper Weight:
52 – 128 g/m2
ADF Capacity:
150 sheets (80 g/m2)
Daily Scan Volume:
Up to 11,200 sheets / day
Multi-feed Detection:
Ultrasonic Sensor and Length Detection
Interface:
USB 3.2 Gen 1
Ethernet (1000BASE-T/100BASE-TX/10BASE-T)
Wi-Fi (IEEE 802.11 b/g/n)
Wi-Fi Direct (max 8 connections)
USB 2.0 Host
Max Document Size:
Flatbed: 297.1 x 431.8 mm
ADF: 297.1 x 3,556 mm
Min Document Size:
ADF: 105 x 148 mm
Scan to Destinations:
Computer (Document Capture Pro), Network Folder/FTP, Email, USB Drive, Cloud (Epson Connect), Computer (WSD)
Scan Speed*2:
Flatbed (A4, Colour/Monochrome):
300 dpi: 4 sec
ADF (A4, Colour/Monochrome):
300 dpi: 70 ppm / 140 ipm
USB Host Function:
Type of Devices:
Memory Devices
Function:
Scan to Memory Device
File Format:J
PEG, TIFF, Multi-TIFF, PDF, PDF/A
Drivers and Software:
Supported OS (Scanner Driver):
Windows 7 / 8 / 8.1 / 10 / 11
Server 2008 or later
Mac OS X 10.9.5 or later, macOS 11 or later
Driverless Solutions:
Apple AirPrint
Mopria™ Scan
Chrome OS
Driver Compatibility:
TWAIN, SANE, WIA, ICA, ISIS
Bundled Software:
Epson Scan 2
ISIS Driver (Web Download)
Epson Scan OCR Component
Epson Scan PDF Extensions
Document Capture Pro (Windows) / Document Capture (Mac)
Software Solutions Compatibility:
Epson Device Admin
Epson Remote Services
Epson Smart Panel (iOS / Android)
Epson Open Platform
Epson Print Admin
Epson Print Admin – Advanced Workflows
Epson Print Admin Serverless
File Format:
Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG
Document Capture Pro: JPEG, JPEG2000*3, BMP*3, PDF, Searchable PDF, TIFF, Multi-TIFF*3, PNG, DOCX, XLSX, PPTX*3
Control Panel:
LCD Screen:
4.3” LCD Touchscreen
Electrical Specifications:
Rated Voltage:
AC 220 – 240 V
Rated Frequency:
50 – 60 Hz
Power Consumption:
Operating: 26 W (USB), 27 W (Ethernet/Wi-Fi)
Ready Mode: 7.6 W (USB), 7.7 W (Ethernet), 8.0 W (Wi-Fi)
Sleep Mode: 0.7 W (USB), 0.8 W (Ethernet), 1.2 W (Wi-Fi)
Power Off: 0.1 W
Environmental Conditions:
Temperature:
Operating: 5 – 35 °C
Storage: -25 – 60 ℃
Humidity:
Operating: 15 – 80 % (No condensation)
Storage: 15 – 85 % (No condensation)
Dimensions and Weight:

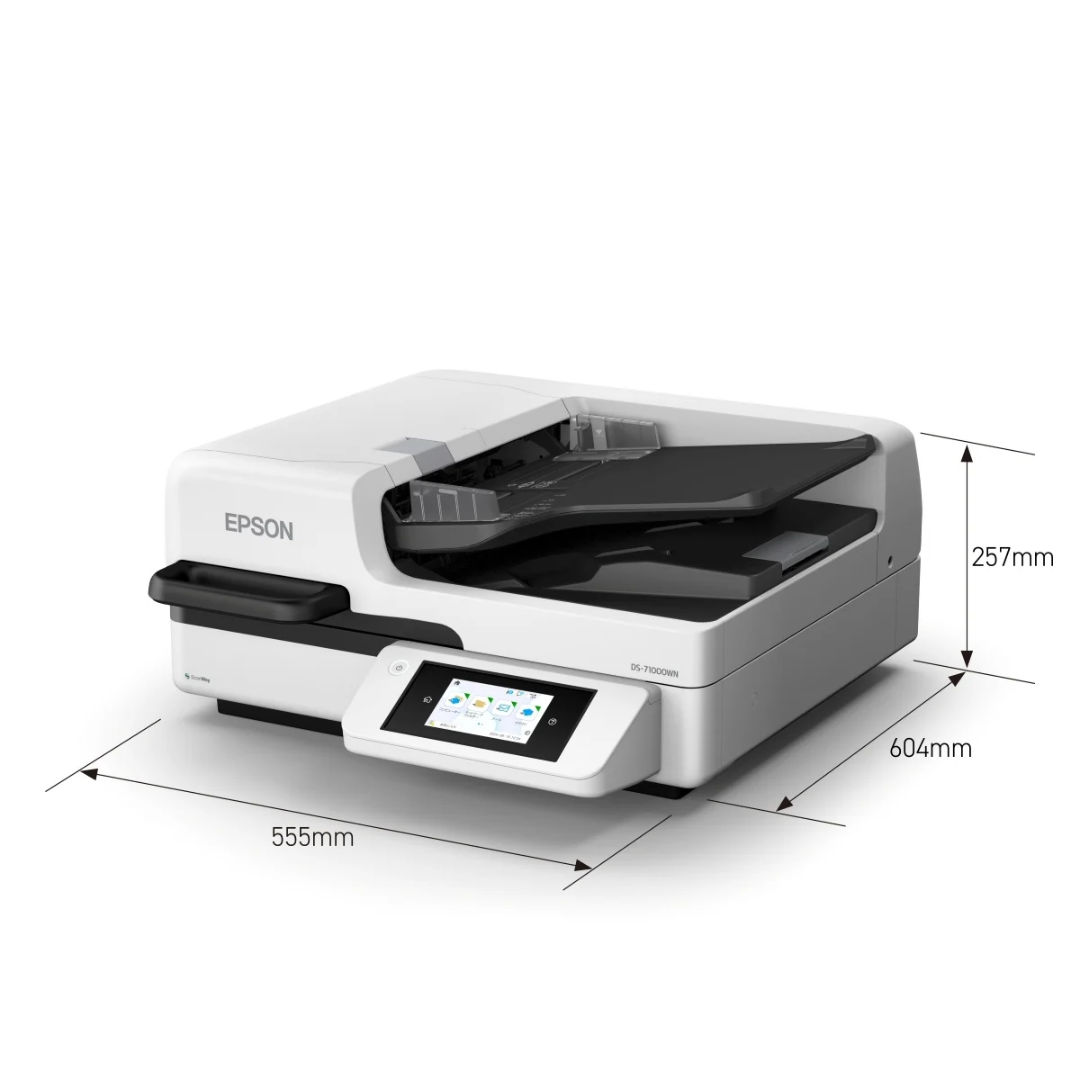

Dimensions (W x D x H):
555 x 604 x 257 mm
Weight:
19.7 kg
