Description

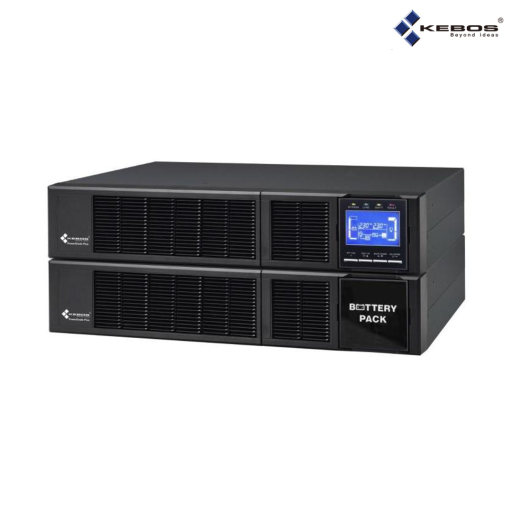

Kebos KR11 1-10KVA
KR11 1-10KVA Rack mount Online UPS Ideal for medium-density power protection demand, provides Rack/Tower form factor to fit diverse environment. Despite its compact footprint, this UPS incorporates internal battery packs which can be accessed via the front panel for maintenance checks and replacement without removing the UPS from its rack mounting.
The LCD display panel can be easily shifted by pressing buttons to suit the installation format, vertically stand or flatly rack mount. Besides, IT personnel can manage equipment well from learning remaining backup time information via LCD display.
Technical Specifications
| Model |
KR11 PRO-10KVA
|
| Capacity |
10KVA /10KW
|
| Form Factor |
Rackmount
|
| INPUT | |
| Nominal Voltage |
208 / 220 / 230 / 240 Vac
|
| Voltage Range | 110-300 Vac (176-300 Vac +/- 3% at 100% load | 110-300 Vac +/- 3% at 50% load) |
| Frequency Range |
40-60 Hz / 50-70 Hz
|
| Power Factor |
0.99
|
| OUTPUT | |
| Nominal Voltage |
208 / 220 / 230 / 240 Vac
|
| Voltage Regulation |
+/- 1%
|
| Frequency Range (Synchronized) |
46-54 Hz (50 Hz) or 56-64 Hz (60 Hz)
|
| Frequency Range (Battery Mode) |
50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
|
| Transfer Time |
Zero
|
| Crest Factor |
3:1
|
| Harmonic Distortion |
≦ 1% of T.H.D. (linear load)
≦ 4% of T.H.D. (non-linear load) |
| Waveform |
Pure Sinewave
|
| BATTERY | |
| Battery Quantity / Type |
16 x 12V 9Ah, Maintenance-Free, Sealed Lead Acid with Suspended Electrolyte, Leak Proof
|
| Typical Recharge Time |
9 Hours to 90% capacity
|
| Charging Current |
Default: 1A +/-10%
Max: 2A +/-10% (Adjustable) |
| SYSTEM FEATURES | |
| Efficiency |
AC Mode: 93.5%
Battery Mode: 92% |
| LCD Panel |
UPS Status, Load Level, Battery Level, Input & Output Voltages, Battery Run Time, & Fault
Conditions |
| Protection |
Discharge, Overcharge, Overload, Short Circuit & Surge Protection
|
| Alarm |
Battery Mode: Sounding every 4 seconds
Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continuously sounding Bypass: Sounding every 2 minutes |
| ENVIRONMENTAL | |
| Operating Temperature |
0 to 50 Degrees Celsius
|
| Humidity Range |
< 95% (non-condensing)
|
| Noise Level |
Less than 58 dB at 1 Meter
|
| PHYSICAL | |
| Dimension D x W x H (mm) |
UPS: 600 x 438 x 133 (3U)
BATTERY: 668 x 438 x 88 (2U) |
| Weight (kg) |
UPS: 20
BATTERY: 48 |
| STANDARDS | |
| Safety |
IEC/EN62040-1
IEC/EN60950-1 |
| EMC |
IEC/EN62040-2
IEC61000-4-2 IEC61000-4-4 IEC61000-4-5 IEC61000-4-6 IEC61000-4-8 EN 61000-2-2 |
| PRODUCT SUPPORT | |
| Warranty |
Two (2) Years Warranty on UPS Electronics and One (1) Year on Battery
|
In the interests of continuous product improvement, all specifications are subject to change without notice.
