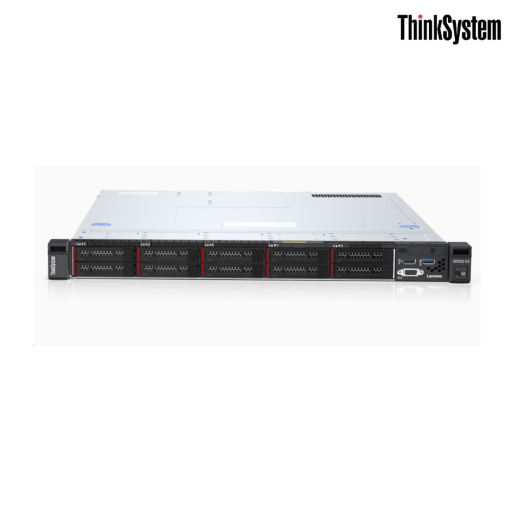

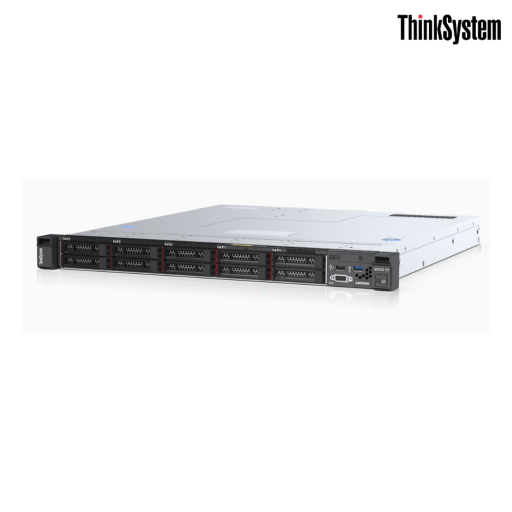

LENOVO ThinkSystem SR250 V3 Rack Server (7DCLA00EAP)

₱188,000.00

The SR250 V3 is an ideal cost-effectiveness for growing companies. Powered by the Intel ® Xeon® E-2400/6300-series and supporting the latest technologies such as DDR5 memory and PCIe Gen5, it delivers the speed and performance needed to support virtualization and business applications, bringing high value to IT infrastructure.

Categories: , Tags: , , , , , , , , , Brand: ,

Description

Technical Specifications

Components Specification
Machine type 7DCM – 1 year warranty
7DCL – 3 year warranty
Form factor 1U rack-mount
Processor Intel Xeon E-2434 4C 55W 3.4GHz Processor
Chipset Intel Raptor Lake PCH-S C266
Memory 1x 16 GB, Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs.
Memory maximum Up to 128 GB using 4x 32 GB UDIMMs.
Memory protection Error-correcting code (ECC)
Disk drive bays Available configurations:

  • 8x 2.5-inch hot-swap SATA only, or SAS/SATA drive bays
Hard Disk Options
(To be added to the server cost)		 SAS HDD
7XB7A00025 ThinkSystem 2.5″ 600GB 10K SAS 12Gb Hot Swap 512n HDD
7XB7A00027 ThinkSystem 2.5″ 1.2TB 10K SAS 12Gb Hot Swap 512n HDD
7XB7A00028 ThinkSystem 2.5″ 1.8TB 10K SAS 12Gb Hot Swap 512e HDD
4XB7A83970 ThinkSystem 2.5″ 2.4TB 10K SAS 12Gb Hot Swap 512e HDD v2

SATA SSD
4XB7A90873 ThinkSystem 2.5″ Multi Vendor 480GB Read Intensive SATA 6Gb HS SSD v2
4XB7A90874 ThinkSystem 2.5″ Multi Vendor 960GB Read Intensive SATA 6Gb HS SSD v2
4XB7A90875 ThinkSystem 2.5″ Multi Vendor 1.92TB Read Intensive SATA 6Gb HS SSD v2
Maximum internal storage
  • 2.5-inch drives:
    • 76.8TB using 10x 7.68TB SATA 6Gb HS SSDs
    • 24TB using 10 x 2.4TB 10K 2.5-inch SAS HDDs

    3.5-inch drives:

    • 88TB using 4x 22TB 3.5-inch SAS HDDs
    • 30.7TB using 4x 7.68TB 3.5-inch SATA SSDs
  • Intermix of SAS and SATA is supported.
Storage controller ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb internal Adapter, support for RAID 0, 1, 10, 5, 50, 6, 60, RAID 1 Triple, and RAID 10 Triple
Optical drive bays No support. Use an external optical drive.
Tape drive bays No support
Network interfaces Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management.
PCI Expansion slots Two PCIe slots depending on the riser selected:

  • Riser with two x8 slots:
    • Slot 1: PCIe G4 x8 (x8 slot, open-ended) 25W, half-length, low-profile
    • Slot 2: PCIe G4 x8 (x16 slot, closed-ended) 50W, half-length, low-profile
    • Slimline x8 connector (internal): PCIe G3 x4 (x8 slot, closed-ended) 25W, half-length, low-profile
  • Riser with one x16 slot:
    • Slot 1: Not connected
    • Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W, half-length, half-height to support PCIe x16 card, such as GPU
    • Slimline x8 connector (internal): PCIe G3 x4 (x8 slot, closed-ended) 25W, half-length, low-profile

Note: Slimline x8 connector to support onboard NVMe (PCIe 4.0) or CFF RAID card
Ports
  • Front:
    • One USB 3.2 G1 (5 Gb/s) port
    • One USB 2.0 port (also for XClarity Mobile connectivity for local systems management)
    • Optional VGA port
  • Rear:
    • Two USB 3.2 G1 (5 Gb/s) ports
    • One VGA video
    • One RJ-45 systems management network port
    • Two RJ-45 GbE network ports
    • One serial port
Cooling Four non-hot-swap system fans
Power supply ThinkSystem 800W 230V/115V Platinum CRPS Hot-Swap Power Supply v1.4
Hot-swap parts Hard drives and hot-swap power supplies
Systems management Operator panel with status LEDs. XClarity Controller 2 (XCC2) embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XCC2 platinum to enable premium functions.
Security features Power-on password, administrator’s password, Trusted Platform Module, supporting TPM 2.0. Optional lockable front bezel for physical security.
Video G200 graphics with 16 MB memory, integrated into the XCC2. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920×1200 32bpp at 60Hz.
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9×5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions Width: 434.4 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 561 mm (22.1 in.). See Physical specifications for details.
Weight Maximum configuration: 12.3 kg (27.1 lb) (3.5” config) or 11.44 kg (2.5” config).

The SR250 V3 server is shipped with the following items:

  • Documentation flyer
  • Power cords (model and region dependent)
