Altos BrainSphere™ T350 F5 Tower Server

Description

RFQ#
SVR.2025.618

Specifications
Processor (1x) Intel® Xeon® Silver 4310 12C/24T (2.10GHz) Processor
Cache Memory 18MB Cache
Memory (1x) 16GB DDR4-3200 ECC RDIMM
NOTE: Runs at 2666 due to processor limitation.
NOTE: 16 DIMM slots [8 DIMM slots per processor socket]
Chipset Intel® C621A Chipset
Network Controller 2 x 1Gb/s Lan Ports
Storage Controller 8-port 12Gb/s SAS RAID Card (0/1/10/5/6/50/60) with Cache Protection Module
Hard Drive 2.5″ 1.2TB SAS 10KRPM Hard Drive

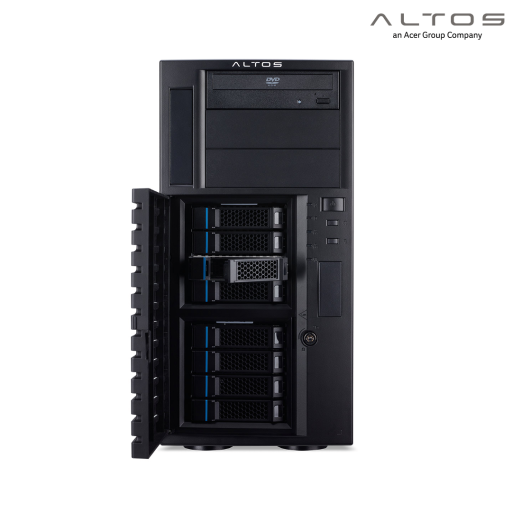

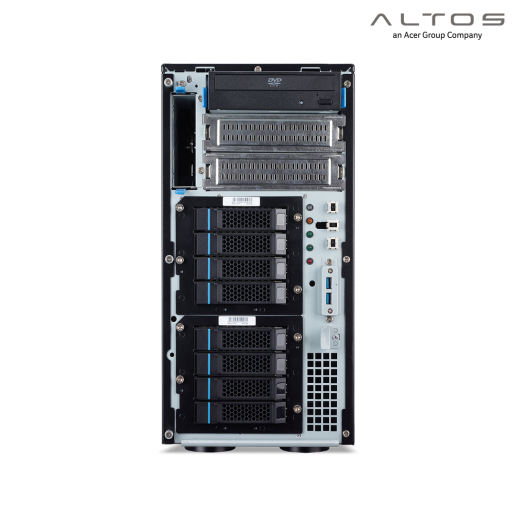

Internal Storage 8 x 3.5” /2.5” SATA hot-swappable bays
Optical Drive N/A
Graphics ASPEED AST2600 BMC
Power Supply 2 x 800W 80Plus Platinum CRPS Redundant power supply
Management IPMI2.0, KVM with dedicated LAN, Smart Remote Console Monitoring
Form Factor Tower Server
I/O Ports
Front: 2 x USB 3.0 Type-A Ports

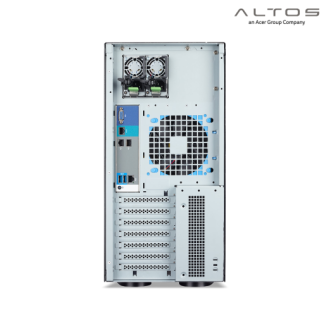

Rear: 2 x USB 3.0 Type-A Ports, 2 x RJ45 Port (intel I210-AT), 1 x RJ45 Port (COM), 1 x RJ45 Port (Dedicated BMC LAN Port), 1 x ID Button with LED, 1 x VGA Port
Dimension 620(D) x 220 (W) x 425(H) mm approximately
Warranty 3 Years Parts – 3 years Labor – 3 Years Onsite (w/ 24×7 Phone Support)
