Description
Essential Online UPS
Reliability and performance
- The Eaton 9E constantly monitors power conditions and regulates voltage and frequency due to the online double conversion topology.
- Power more servers than most similar UPSs due to a 0.8 power factor.
- Trust a leading manufacturer with decades of experience and high quality standards: CE compliance certified by external agency (CB report from the TUV).
Manageability

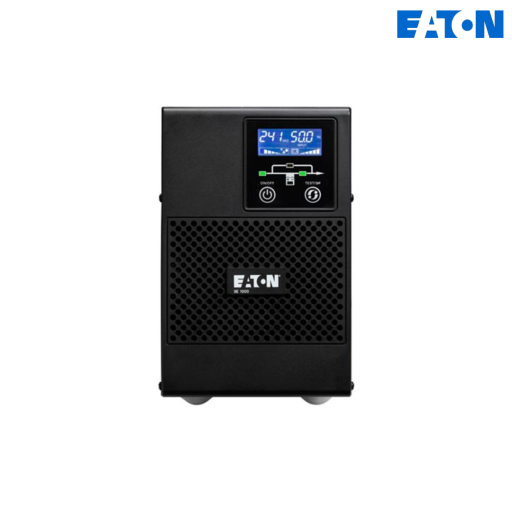

- Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface.
- Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-M2). Relay cards or ModBus cards are also available.
- Eaton 9E is compatible with Eaton IPM Editions Software which permits to integrate all major operating systems, leading virtualisation environments and cloud orchestrations tools.
Flexibility
- The internal bypass allows service continuity in case of an internal fault. A maintenance bypass is also available as standard for easy maintenance of the UPS without powering down critical systems.
- Make your installation more flexible with a combo input (3:1 and 1:1) on the 10kVA, 15kVA, and 20kVA.
- Extend runtime as you like by adding up to 4 external battery modules (EBM). For extra-long runtime, XL models with internal supercharger are also available at 3kVA, 10kVA and 20kVA.
Technical Specifications
| Model |
9E1000i
|
| Rating (VA/W) |
1000 VA / 800 W
|
| Form Factor |
Tower
|
| Electrical Characteristics | |
| Technology |
Online double conversion
|
| Input Voltage |
208 / 220 / 230 / 240V
|
| Input voltage range without using batteries |
100 – 300V
|
| Output Voltage |
208 / 220 / 230 / 240V ±1 %
|
| Output THDU |
<2% for 100% linear load, <6% for 100% non-linear load
|
| Input Frequency range |
40Hz – 70Hz, 50 / 60Hz auto selection
|
| Efficiency at Inverter mode |
up to 91% in online mode
up to 97.5% in high efficiency mode (ECO mode) |
| Overload capacity (in on-line mode) |
105% – 130% : 60s, 130% – 150% : 10s, >150% : ≥300ms
|
| Recharge time to 90% battery capacity |
4 Hours
|
| Extendable backup time |
N/A
|
| Compatible EBM type |
N/A
|

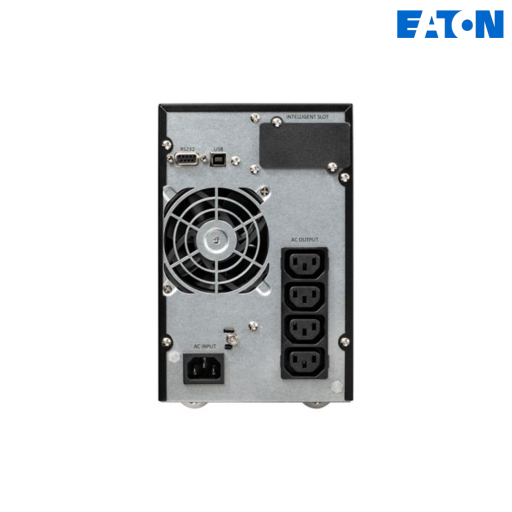

| Connections | |
| Input |
IEC C14
|
| Output |
4x IEC C13
|
| Typical backup times at 50%/100% Load (minutes) | |
| 9E |
11 / 4.5
|
| 9E + 1 EBM |
N/A
|
| 9E + 4 EBM |
N/A
|
| Communication | |
| Communication ports |
1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
|
| Communication slot |
1 slot for Network-M2, INDGW-M2 or Relay-MS cards
|
| Software |
Intelligent Power Software
|
| Operating conditions, Standards and Approvals | |
| Operating temperature |
0 to 40°C
|
| Noise level |
37dB @ typical load
|
| Safety |
IEC/EN 62040-1
|
| EMC, Performance |
IEC/EN 62040-2
|
| Approvals |
CE, CB report (TUV)
|
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) |
356 x 228 x 144
|
| UPS Weight (kg) |
9.5kg
|
| EBM dimensions (mm) (for 2000 / 3000VA) |
–
|
| EBM weight (kg) |
–
|
| Customer service & support | |
| Warranty |
3 Years on UPS
2 Years on Battery |
In the interests of continuous product improvement, all specifications are subject to change without notice.
