Description
Technical Specifications
| Model |
9E 3000i
|
| Rating |
3000 VA / 2400 W
|
| Form Factor |
Tower
|
| Electrical Characteristics | |
| Technology |
Online double conversion
|
| Input Voltage | 208 / 220 / 230 / 240 V |
| Input voltage range without using batteries |
100 – 300V
|
| Output Voltage |
208 / 220 / 230 / 240V ±1 %
|
| Output THDU |
<2% for 100% linear load,
<6% for 100% non-linear load |
| Input frequency range |
40Hz – 70Hz, 50 / 60Hz autoselection
|
| Efficiency at inverter mode |
up to 91% in online mode, up to 97.5% in high efficiency mode (ECO mode)
|
| Overload capacity (in on-line mode) |
105% – 130% : 60s, 130% – 150% : 10s, >150% : ≥300ms
|
| Recharge time to 90% battery capacity |
4 hours
|
| Extendable backup time |
Yes
|
| Compatible EBM type |
9EEBM72
|

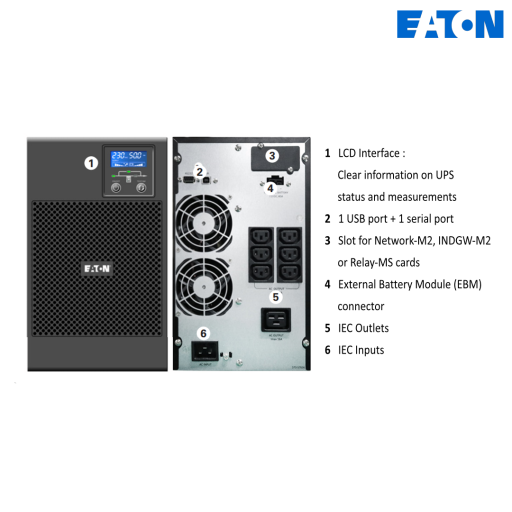

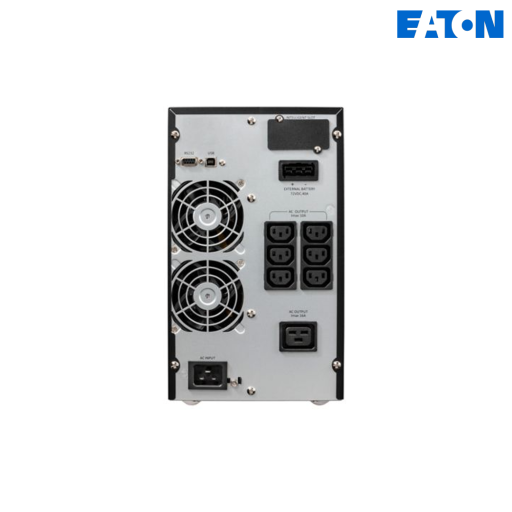

| Connections | |
| Input |
IEC C20
|
| Output |
6 x IEC C13 + 1 x IEC C19
|
| Typical backup times at 50%/100% Load (minutes) | |
| 9E |
13.4 / 4.7
|
| 9E + 1 EBM |
49 / 22
|
| 9E + 4 EBM |
173 / 83
|
| Communication | |
| Communication ports |
1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
|
| Communication slot |
1 slot for Network-M2, INDGW-M2 or Relay-MS cards
|
| Software |
Intelligent Power Software
|
| Operating conditions, Standards and Approvals | |
| Operating temperature |
0 to 40°C
|
| Noise level |
37dB @ typical load
|
| Safety |
IEC/EN 62040-1
|
| EMC, Performance |
IEC/EN 62040-2
|
| Approvals |
CE, CB report (TUV)
|
| Dimensions D x H x W / Weight | |
| UPS Dimensions (mm) |
356 x 228 x 144
|
| UPS Weight (kg) |
24.3 kg
|
| EBM dimensions (mm) (for 2000 / 3000VA) |
399 x 330 x 190
|
| EBM weight (kg) |
35.8 kg
|
| Customer service & support | |
| Warranty |
3 Years
|
