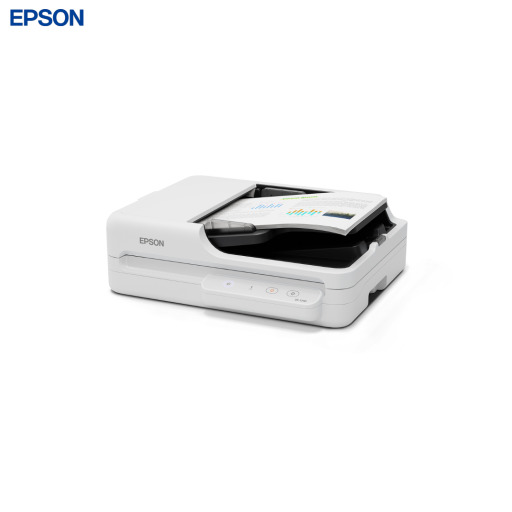

Epson WorkForce DS-1730 A4 Flatbed Document Scanner with Duplex ADF

Description

Dimensions and Weight:

---

Dimensions (W x D x H):
425 x 351 x 135 mm
Weight:
4.8 kg

Environmental Conditions:

---

Temperature:
Operating: 5 – 35 °C
Storage: -25 – 60 ℃
Humidity:
Operating: 15 – 80 % (No condensation)
Storage: 15 – 85 % (No condensation)

Scanner:

---

Scanner Type:
A4 flatbed colour image scanner with ADF
Sensor Type:
Contact Image Sensor (CIS) x 2
Scanning Method:
Flatbed: Fixed document and moving carriage
ADF: Fixed carriage and moving document
Light Source:RGB LED x 2
Optical Resolution^*1:
Flatbed: 1,200 x 1,200 dpi
ADF: 600 x 600 dpi
Output Resolution:
50 – 1,200 dpi (in 1 dpi increments)
Bit Depth:
Colour: 30-bit input, 24-bit output
Grayscale: 10-bit input, 8-bit output
Black & White: 10-bit input, 1-bit output
Supported Paper Weight:
50 – 120 g/m²
ADF Capacity:
60 sheets (80 g/m²)
Daily Scan Volume:
Up to 3,000 sheets / day
Interface:
USB 2.0
Max Document Size:
Flatbed: 215.9 x 297 mm
ADF: 215.9 x 3,048 mm
Min Document Size:
ADF: 105 x 148 mm

Drivers and Software:

---

Supported OS (Scanner Driver):
Windows 7 / 8 / 8.1 / 10 / 11
Server 2008 / 2012 / 2016 / 2019 / 2022
Mac OS X 10.9.5 or later, macOS 11 or later
Driver compatibility:
TWAIN, SANE, WIA, ICA, ISIS
Bundled Software:Epson Scan 2
ISIS Driver (Web Download)
Epson Scan OCR Component
Epson Scan PDF Extensions
Document Capture Pro (Windows) / Document Capture (Mac)
Software Solutions Compatibility:
Epson Device Admin
File Format:
Epson Scan 2: JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG
Document Capture Pro (Windows): JPEG, JPEG2000, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX

Electrical Specifications:

---

Rated Voltage:
AC 220- 240 V
Rated Frequency:
50 – 60 Hz
Power Consumption:
Operating: 9.0 W
Ready Mode: 3.8 W
Sleep Mode: 0.9 W
Power Off: 0.1 W

Options & Consumables :

---

Cleaning Kit:
Order Code: B12B819291

Notes:
