Description
Technical Specifications
| IMAGE | |
| Projection Technology |
Texas Instruments DLP®
|
| Panel Size |
0.65″
|
| Native Resolution |
1080p
|
| Pixels |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Contrast Ratio |
2000000:1
|
| Brightness (Lumens) |
5600
|
| Light Source |
Quantum Laser
|
| Light Source Life Maximum Hours |
30000
|
| Maximum Supported Resolution |
4096 x 2160
|
| Horizontal Sync. Range (KHz) |
15.4 ~ 91.1
|
| Vertical Sync. Range (Hz) |
24 ~ 120
|
| Uniformity (%) |
85
|
| OPTICAL | |
| Lens |
1.6x
|
| Lens Zoom Adjustment |
Manual
|
| Optional Lenses |
–
|
| Image Offset (%) |
113
|
| Focal Length (mm) |
20.91 ~ 32.62
|
| F-Stop |
–
|
| Vertical Lens shift (%) |
103 ~118
|
| Horizontal Lens shift (%) |
–
|
| Keystone Adjustment |
Automatic / Manual
|
| Vertical Keystone Correction |
±30°
|
| Horizontal Keystone Correction |
±30°
|
| Projection Factor |
1.4 ~ 2.24
|
| Projection Distance (Meters/Feet) |
1.0 ~ 9.3 / 3.3 ~ 30.5
|
| Optical Zoom |
Manual
|
| Digital Zoom Demagnification / Magnification |
0.8x ~ 2.0x
|
|
Focus Adjustment
|
Manual
|

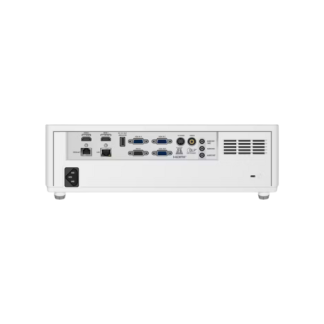

| CONNECTIVITY | |
| Inputs | |
| Mini D-sub 15-pin (VGA) |
✅
|
| Composite Video |
✅
|
| S-Video |
✅
|
| HDMI™ 1.4 |
✅
|
| HDMI™ 2.0 |
✅
|
| USB-B 2.0 |
–
|
| RJ45 – LAN 10/100/1000 |
✅
|
| 3.5 mm Stereo Mini Jack |
✅
|
| 3.5 mm Stereo Mini Jack with Microphone |
✅
|
| Outputs | |
| Mini D-sub 15-pin (VGA) |
✅
|
| 3.5 mm Stereo Mini Jack |
✅
|
| Powered USB-A for Wireless Dongle |
✅
|
| 3D Sync |
✅
|
| Other | |
| RS232 |
–
|
| RJ45 HDBaseT |
✅
|
| All Major 3D Formats |
✅
|
| USB-B 2.0 for Service |
–
|
| USB-A for Service |
–
|
| Micro USB for Service |
–
|
| Document Reader |
–
|
| Video Player |
–
|
| Photo Viewer |
–
|
| Music Player |
–
|
| 12v Screen Trigger |
–
|
| POWER | |
| Power Supply |
100 ~ 240 V AC; 50 – 60 Hz
|
| Power Consumption Max (W) |
341
|
| Power Consumption Min. (W) |
190
|
| Power Consumption Network Standby (W) |
< 2.0
|
| Power Consumption Standby (W) |
< 0.5
|
| GENERAL | |
| Dimensions (W x H x D) (mm / in) |
374 x 117 x 302 / 14.7 x 4.6 x 11.9
|
| Product Weight (Kilograms/Pounds) |
5.5 / 12.1
|
| Fan Noise (dB) |
28 – 30
|
| Audio (w) |
1x 10
|
| Operating Temperature (Celsius/Fahrenheit) |
5 ~ 40 / 41 ~ 104
|
| Operating Humidity (%) |
10 – 85
|
| Max Operating Altitude (meters / feet) |
3048 / 10000
|
| Storage Temperature (Celsius/Fahrenheit) |
-0 ~ 40 / 32 ~104
|
| Storage Humidity (%) |
0 ~ 95
|
| Security |
Kensington Lock Port™, PIN & Timer
|
| In the Box |
Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap
|
| Safety and Regulatory |
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
|
| Environmental |
WEEE, RoHS
|
| Remote Control |
HW-NAVIGATOR-5
|
| Replacement Lamp |
–
|
| Replaces EOL Product |
INL3148HD
|
| PRODUCT SUPPORT | |
| Warranty |
Two (2) Years on Projector
Six (6) Months on lAMP |
*Specifications are subject to change without prior notice.
