Description

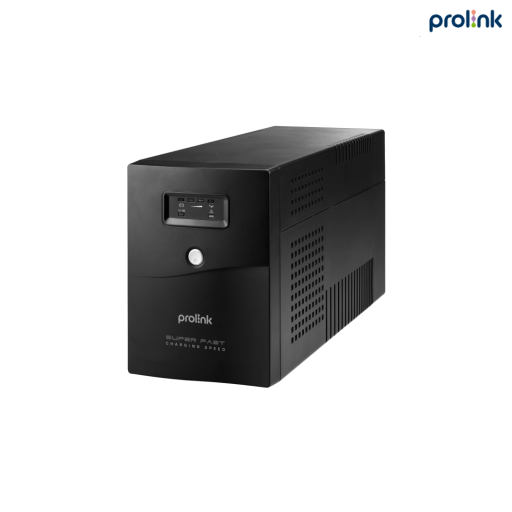

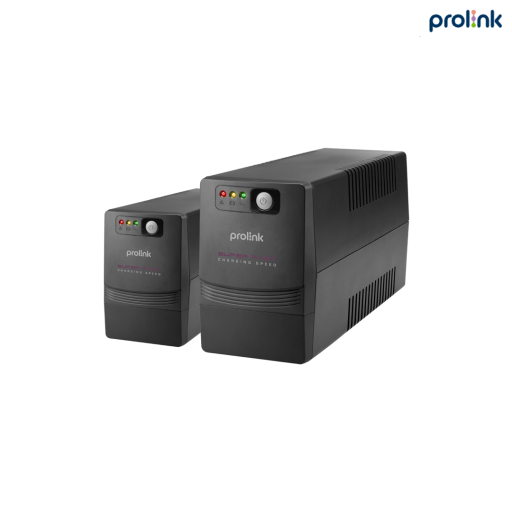

Super-fast Charging Line Interactive UPS series
The Super-fast Charging Line Interactive UPS is engineered to provide reliable power protection for a wide range of applications, from home offices to small businesses. It features Advanced Voltage Regulation technology, which ensures your equipment operates within a safe voltage range, preventing damage from both overvoltages and undervoltages. In the event of a power outage, the UPS seamlessly switches to battery power, providing uninterrupted operation and allowing you to save your work and shut down your systems safely.
Technical Specifications
| Model |
PRO2000SFCU
|
| Capacity |
2000 VA / 1200 W
|
| Output Socket |
8 NEMA sockets
|
| Topology |
Line Interactive
|
| Input Nominal Voltage |
230 VAC
|
| Input Voltage Range |
140 – 300VAC ± 5%
|
| Input frequency |
50 or 60Hz (Auto sensing)
|
| Output nominal voltage |
230 VAC
|
| Output voltage regulation (battery mode) |
± 10%
|
| Output frequency |
50 or 60Hz ± 1Hz
|
| Output transfer time (typical) |
2 ms
|
| Battery type / Quantity |
12V/ 10Ah x 2pcs
|
| Battery recharge time |
2-4 hours recover to 90% capacity
|
| LED display |
AC mode – Green lighting
Battery mode – Yellow flashing every 10 seconds Overload – Red flashing every second Faulty – Red lighting |
| Alarm |
Battery mode – Sounding every 10 seconds
Low battery – Sounding every second Overload – Sounding every 0.5 second Battery replacement alarm – Sounding every 2 seconds Faulty – Continuously sounding |
| Dimension (D x W x H) |
320 x 130 x 182
|
| Weight (Kg) |
10.6
|
| Warranty |
2 Years on UPS
1 Year on Battery |
Product specifications are subject to change without further notice.
