Description
Hardware Specifications
CPU
| CPU Model |
AMD Ryzen V1500B
|
| CPU Quantity |
1
|
| CPU Core |
4
|
| CPU Architecture |
64-bit
|
| CPU Frequency |
2.2 GHz
|
| Hardware Encryption Engine |
✓
|
Memory
| System Memory |
4 GB DDR4 ECC SODIMM
|
| Memory Module Pre installed |
4 GB (4 GB x 1)
|
| Total Memory Slots |
2
|
| Maximum Memory Capacity |
32 GB (16 GB x 2)
|
Notes
- Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
- Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
- For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.
Storage
| Drive Bays |
12
|
| Maximum Drive Bays with Expansion Unit |
24 (DX1222 x 1)
|
| Drive Type (See all supported drives) |
|
| Hot Swappable Drive* |
✓
|
Notes
Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

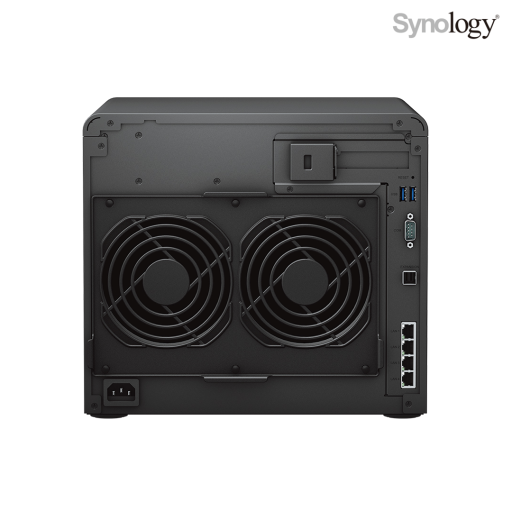

External Ports
| RJ-45 1GbE LAN Port |
4
|
| USB 3.2 Gen 1 Port |
2
|
| Expansion Port |
1
|
| Expansion Port Type |
Mini-SAS HD
|
PCIe
| PCIe Expansion |
1 x Gen3 x8 slot (x4 link)
|
Appearance
| Size (Height x Width x Depth) |
270 mm x 300 mm x 340 mm
|
| Weight |
9.5 kg
|
Others
| System Fan |
120 mm x 120 mm x 2 pcs
|
| Fan Speed Mode |
|
| Easy Replacement System Fan |
✓
|
| Power Recovery |
✓
|
| Noise Level* |
25 dB(A)
|
| Scheduled Power On / Off |
✓
|
| Wake on LAN / WAN |
✓
|
| Power Supply Unit / Adapter |
550 watts
|
| AC Input Power Voltage |
100V to 240V AC
|
| Power Frequency |
50/60 Hz, Single Phase
|
| Power Consumption* |
73.11 watts (Access)
32.12 watts (HDD Hibernation) |
| British Thermal Unit |
249.63 BTU/hr (Access),
109.67 BTU/hr (HDD Hibernation) |
Notes
- Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
- Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
| Operating Temperature |
0°C to 40°C (32°F to 104°F)
|
| Storage Temperature |
-20°C to 60°C (-5°F to 140°F)
|
| Operating Humidity |
8% to 80% RH
|
| Storage Humidity |
5% to 95% RH
|
|
Certification
|
|
|
|---|---|---|
Warranty
| 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus |
Notes
- The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
- Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
|
Environment
|
RoHS Compliant | |
|---|---|---|
|
Packaging Content
|
|
|
|---|---|---|
|
Optional Accessories
|
|
|
|---|---|---|
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
